Spectral Templates - Library V2.0 (2012/01)

, Updated

The tables contain the list of observed stars, organized by spectral type. When available, heliocentric radial velocities and magnitudes are from Simbad; spectral type, effective temperature and surface gravity are from Cayrel de Strobel et al. (1997, A&AS,124,299), except where indicated in the notes. The data are in standard fits format (1D spectrum) - use Shift+left click to download to disk. In the GNIRS table, an "N/A" in the "blue" setting column indicates the target was not observed in that range.

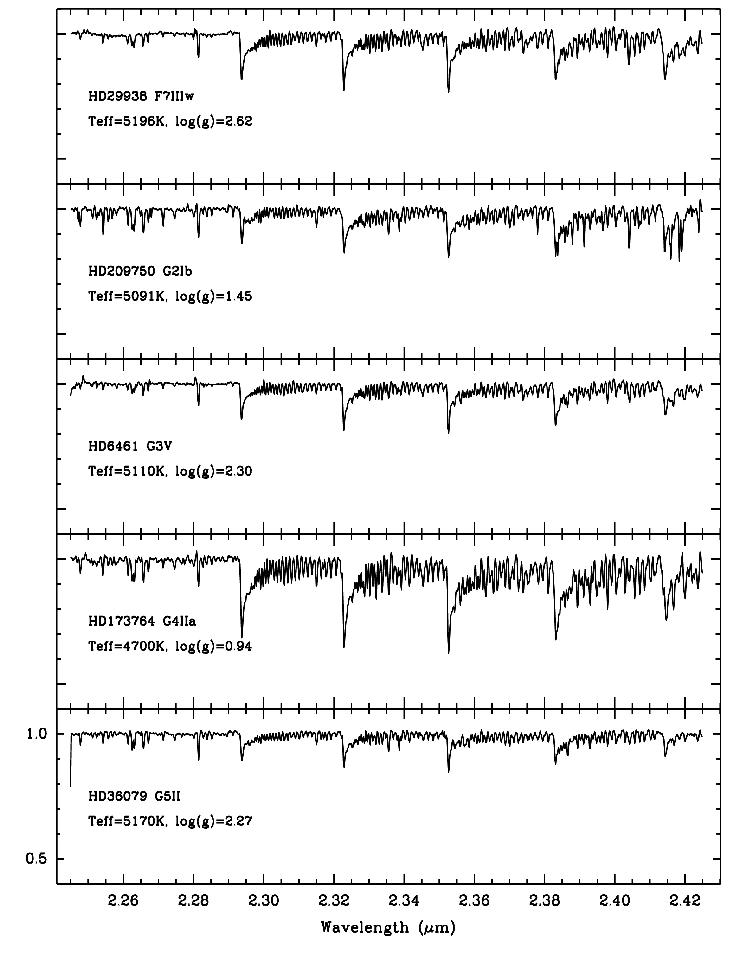

The GNIRS sample
Star V
(mag)
vr
(km/s)
Sp
Type
Teff
(K)

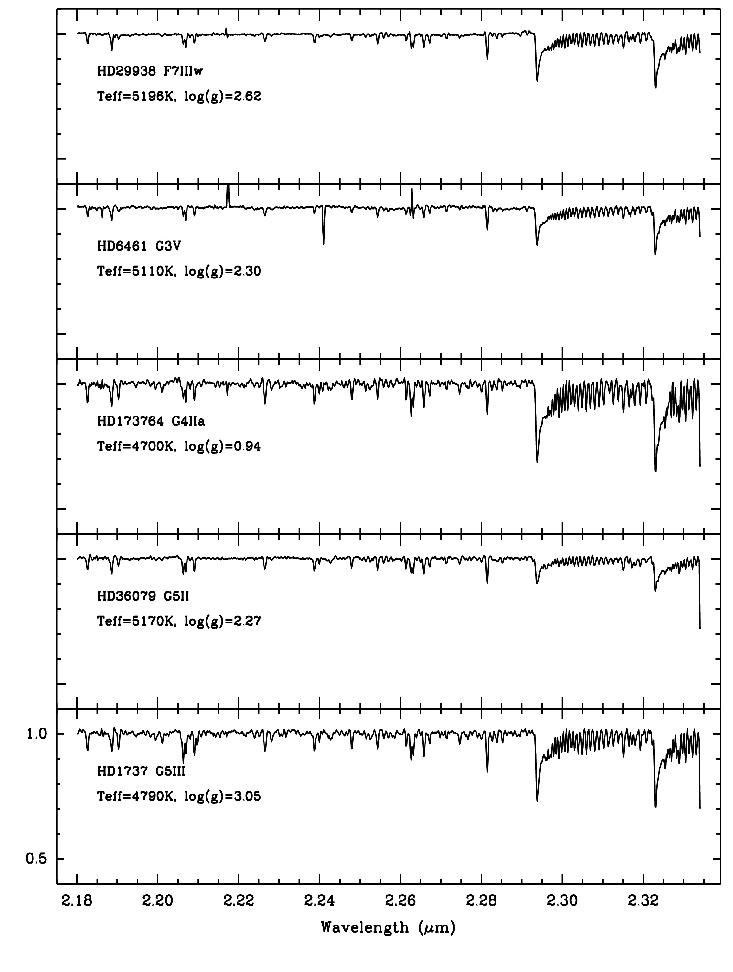

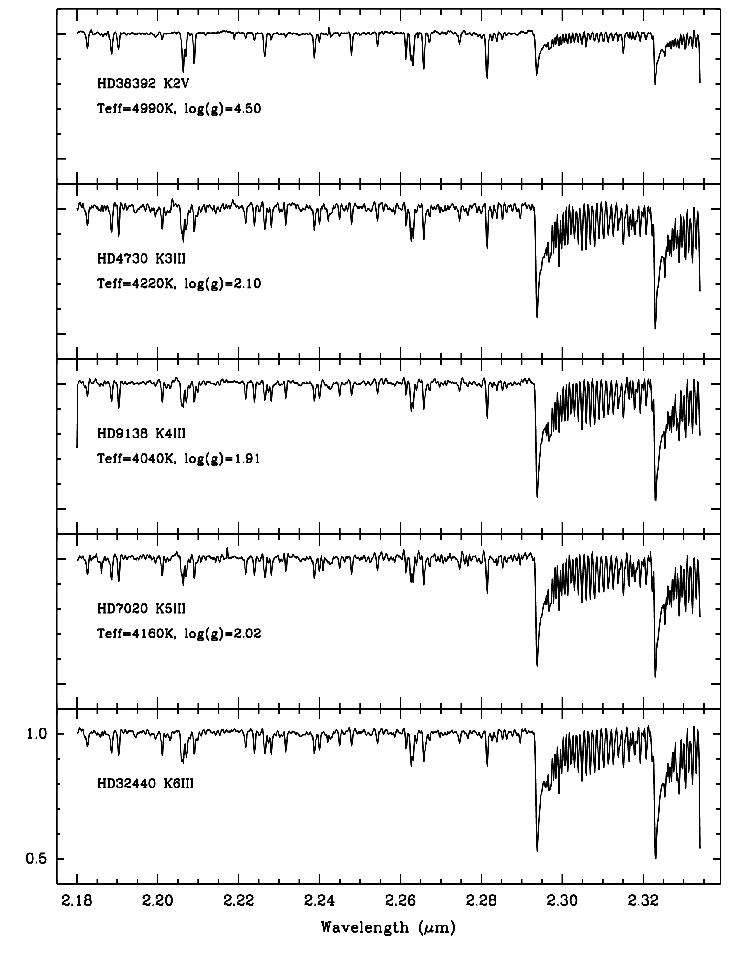

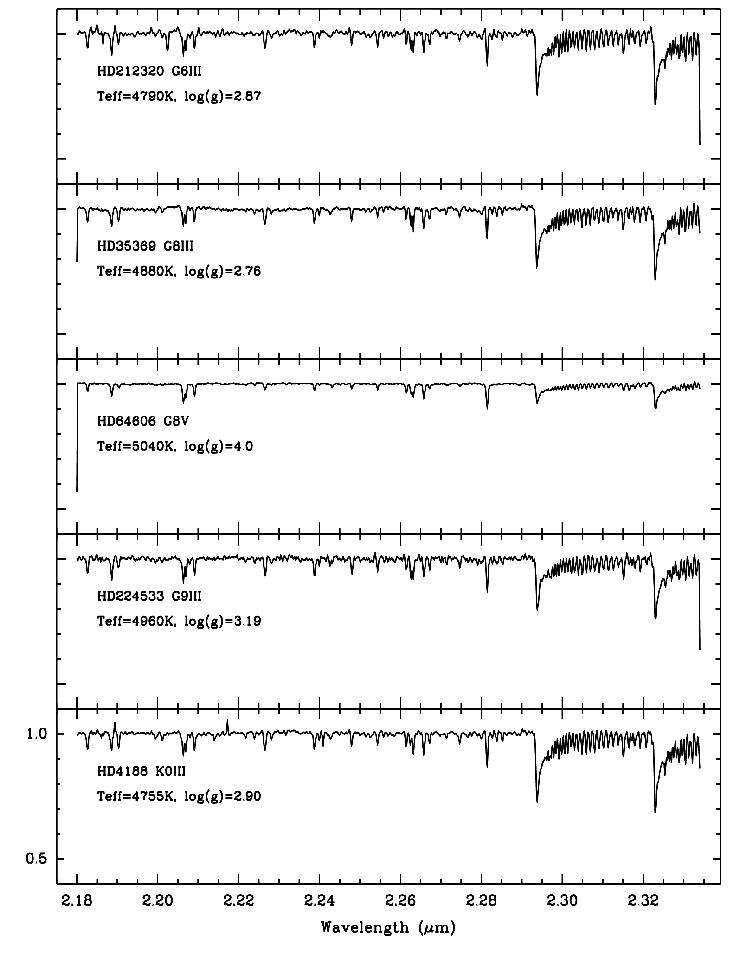

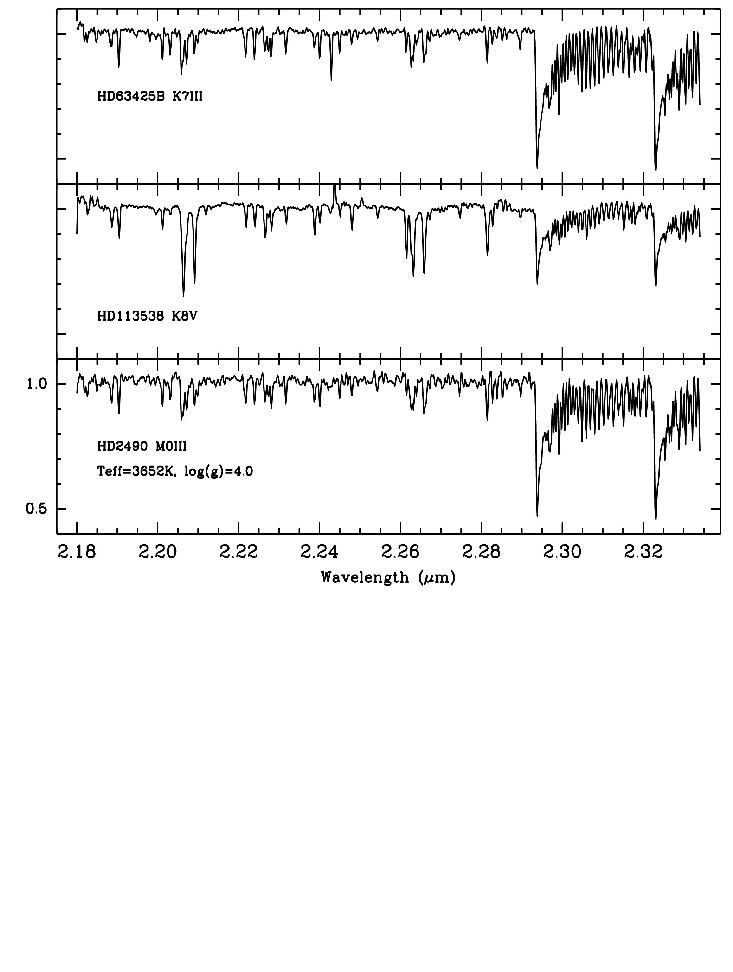

Log g "Blue"
(2.18-2.33)

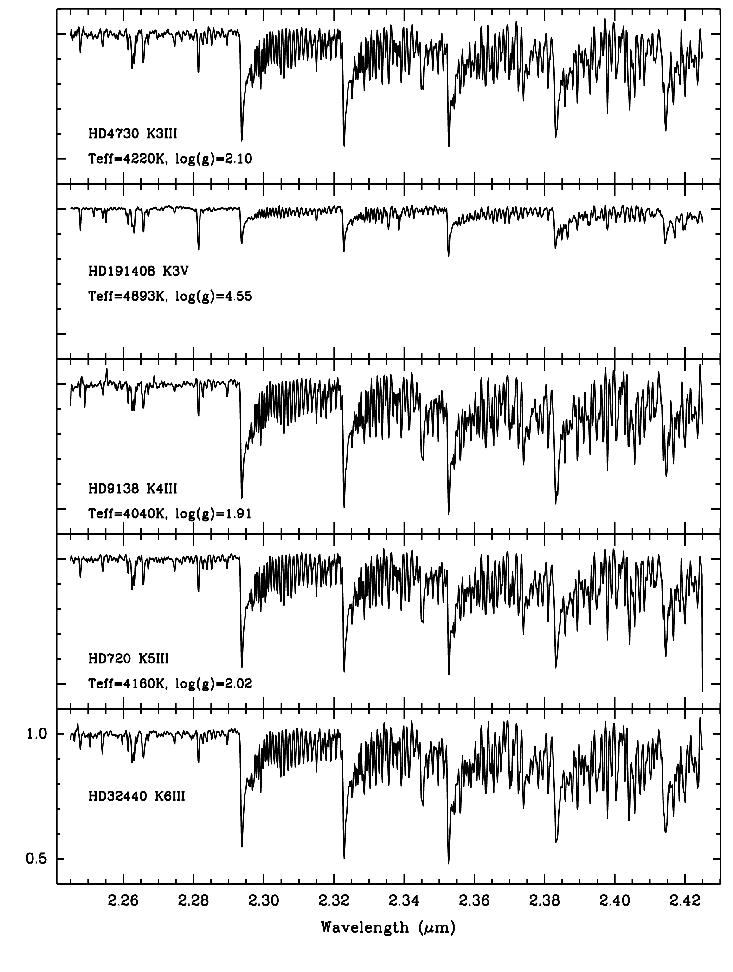

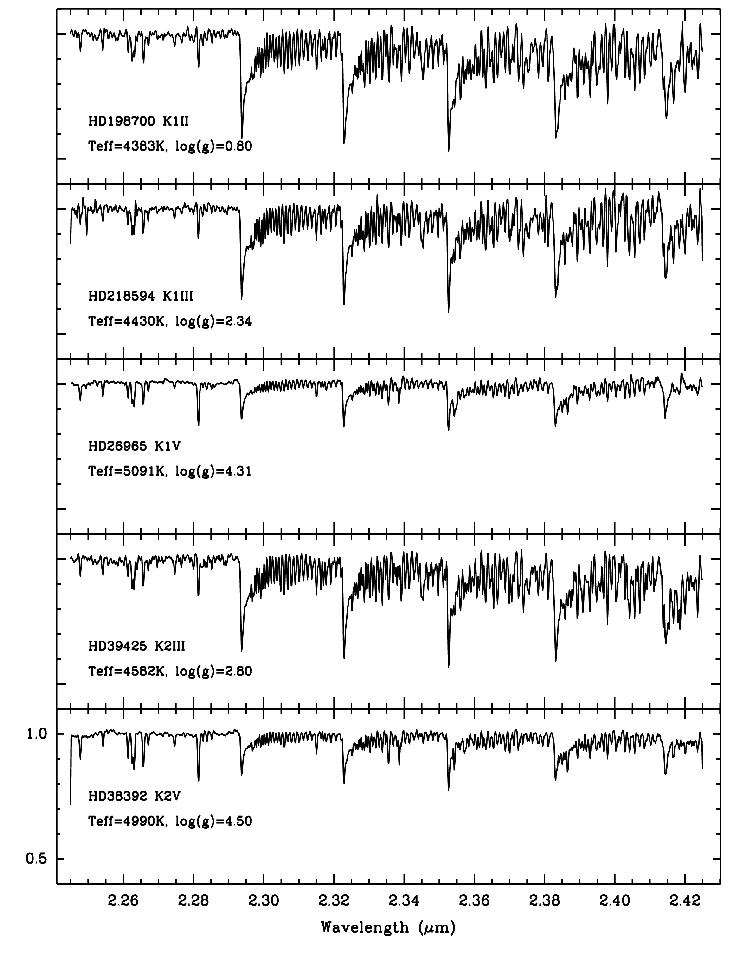

"Red"
(2.24-2.43)

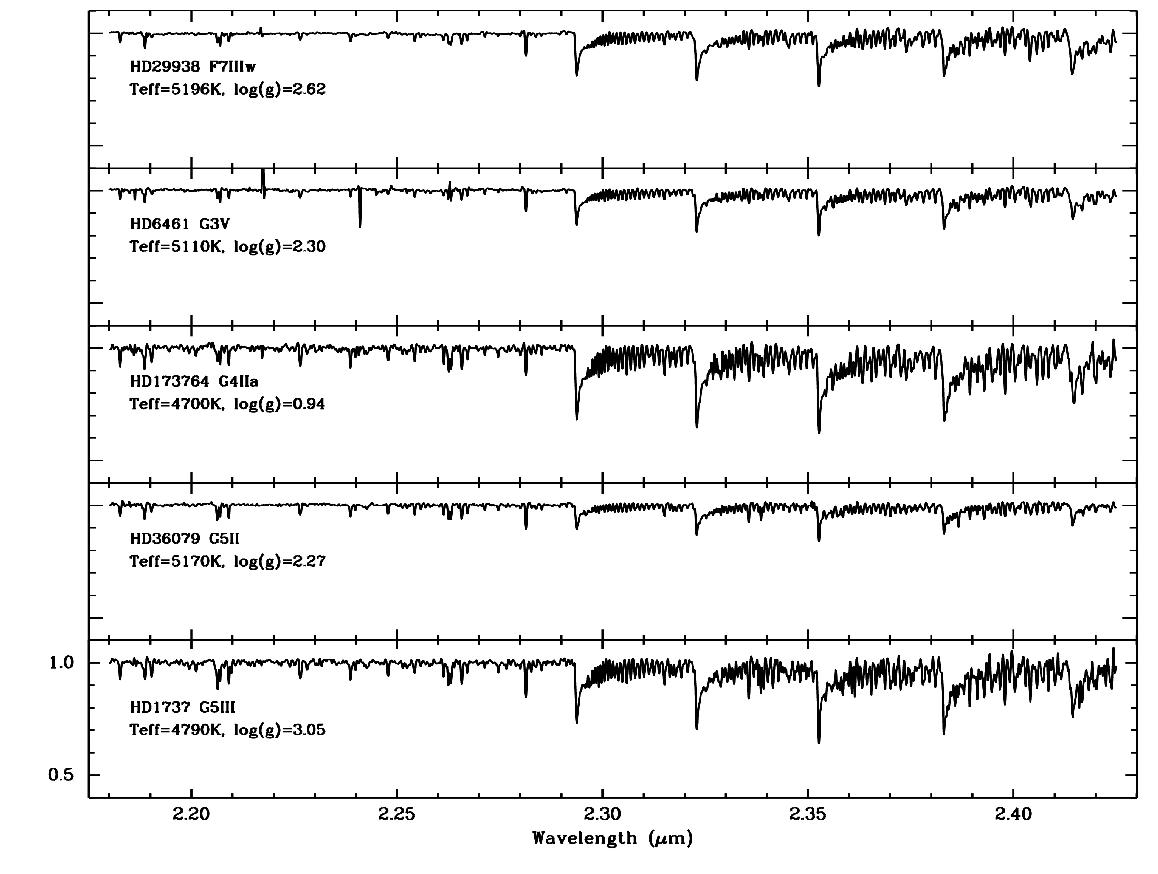

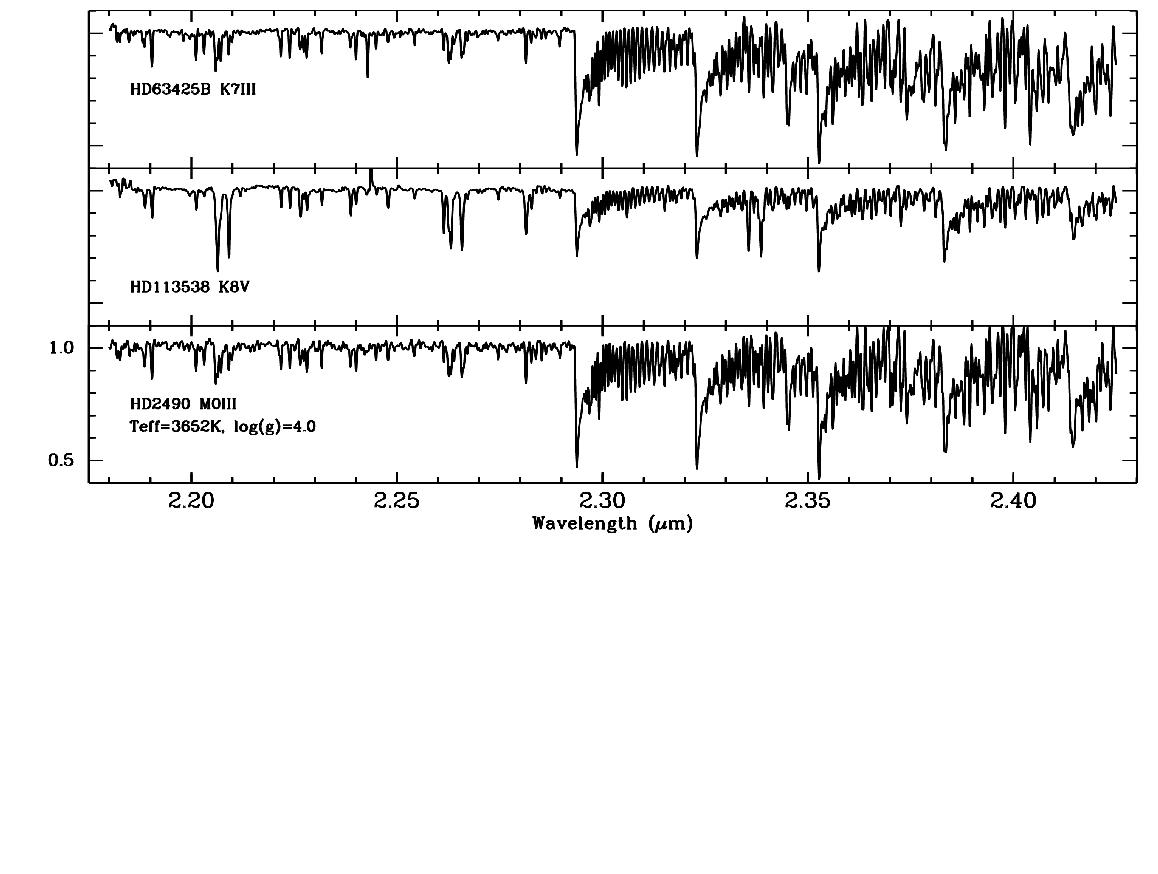

Combined
HD20038 8.91 27 F7IIIw 5196 2.62 data/ plot data/ plot data/ plot
HD209750 2.90 7.5 G2Ib 5091 1.45 N/A data / plot -
HD6461 7.65 1 G3V 5110 2.30 data / plot data / plot data / plot
HD173764 4.23  -21.5 G4IIa 4700 0.94 data / plot data / plot data / plot
HD36079 2.84 -13.6 G5II 5170 2.27 data / plot data / plot data / plot

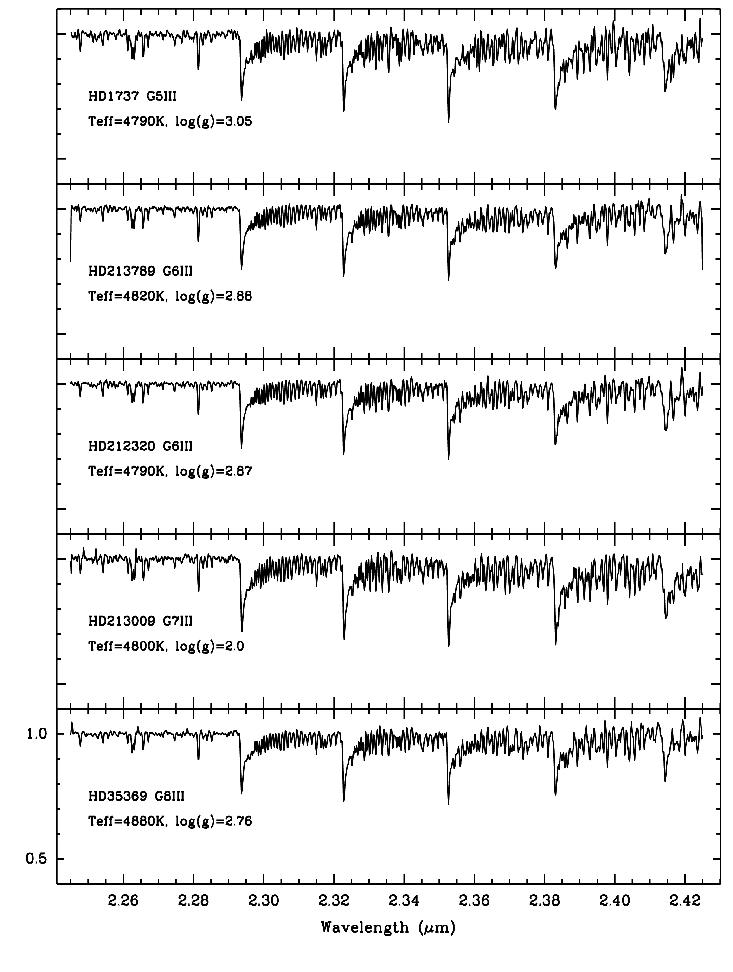

HD1737 5.17 20.6 G5III 4790 3.05 data / plot data / plot data / plot
HD213789 5.89 -8.0 G6III 4820 2.88 N/A data / plot -
HD212320 5.92 -14.2 G6III 4790 2.87 data / plot data / plot data / plot
HD213009 3.97 4.9 G7III 4800 2.0 N/A data / plot -
HD35369 4.14 -18.2 G8III 4880  2.76 data / plot data / plot data / plot

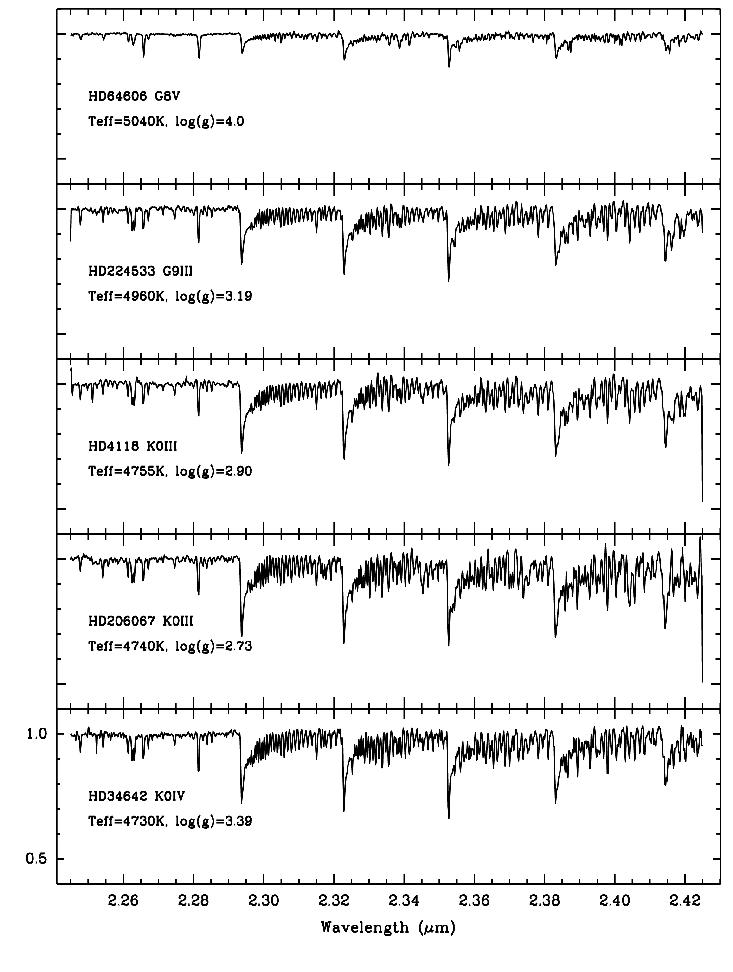

HD64606 7.44 93.4 G8V 5040 4.0 data / plot data / plot data / plot
HD224533 4.89 -0.2 G9III 4960 3.19 data / plot data / plot data / plot
HD4188 4.78 0.6 K0III 4755 2.90 data / plot data / plot data / plot

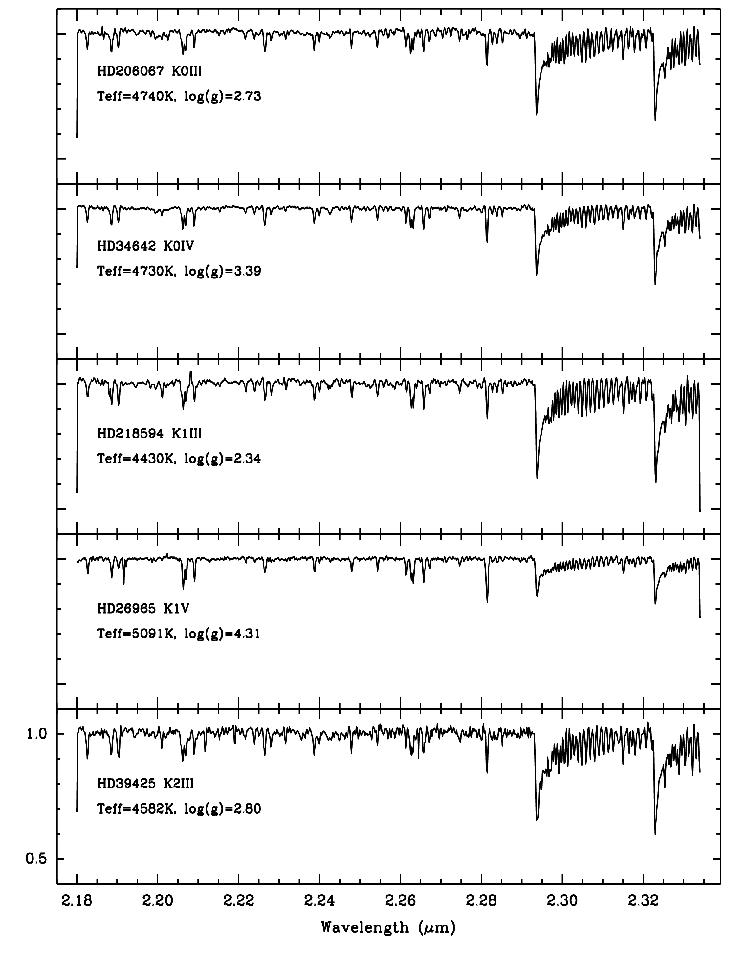

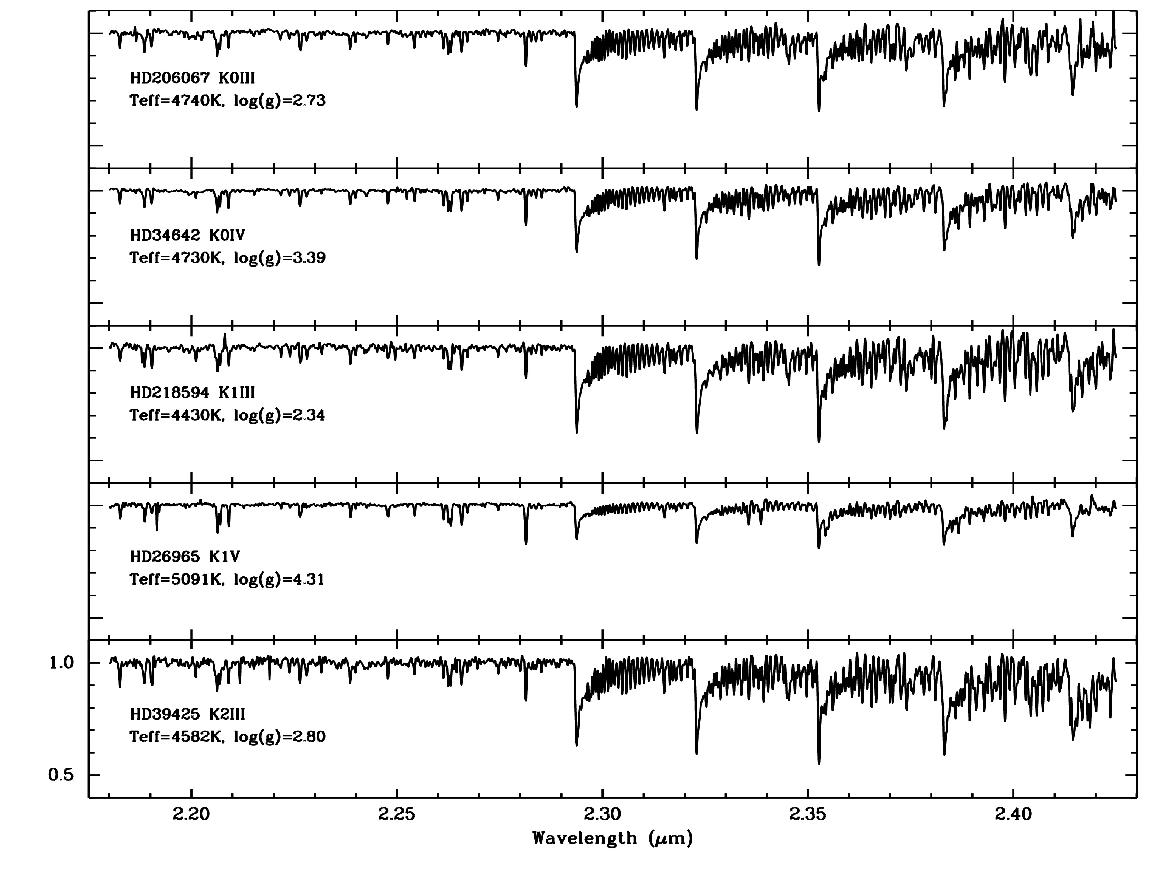

HD206067 5.11 -34.7 K0III 4740 2.73 data / plot data / plot data / plot
HD34642 4.83 21.1 K0IV 4730 3.39 data / plot data / plot data / plot
HD198700 3.66 -4.9 K1II 4383 0.80 N/A data / plot -
HD218594 3.66 21.1 K1III 4430 2.34 data / plot data / plot data / plot
HD26965 4.41 -42.2 K1V(a) 5091 4.31 data / plot data / plot data / plot
HD39425 3.12 88.9 K2III 4582 2.80 data / plot data / plot data / plot
HD38392 6.15 -10.1 K2V 4990 4.50 data / plot data / plot data / plot
HD4730 5.61 3.5 K3III 4220 2.10 data / plot data / plot data / plot
HD191408 5.31 -129.8 K3V 4893 4.55 N/A data / plot -
HD9138 4.84 34.0 K4III 4040 1.91 data / plot data / plot data / plot
HD720 5.42 -5.7 K5III 4160 2.02 data / plot data / plot data / plot
HD32440 (b) 5.47 25.8 K6III data / plot data / plot data / plot

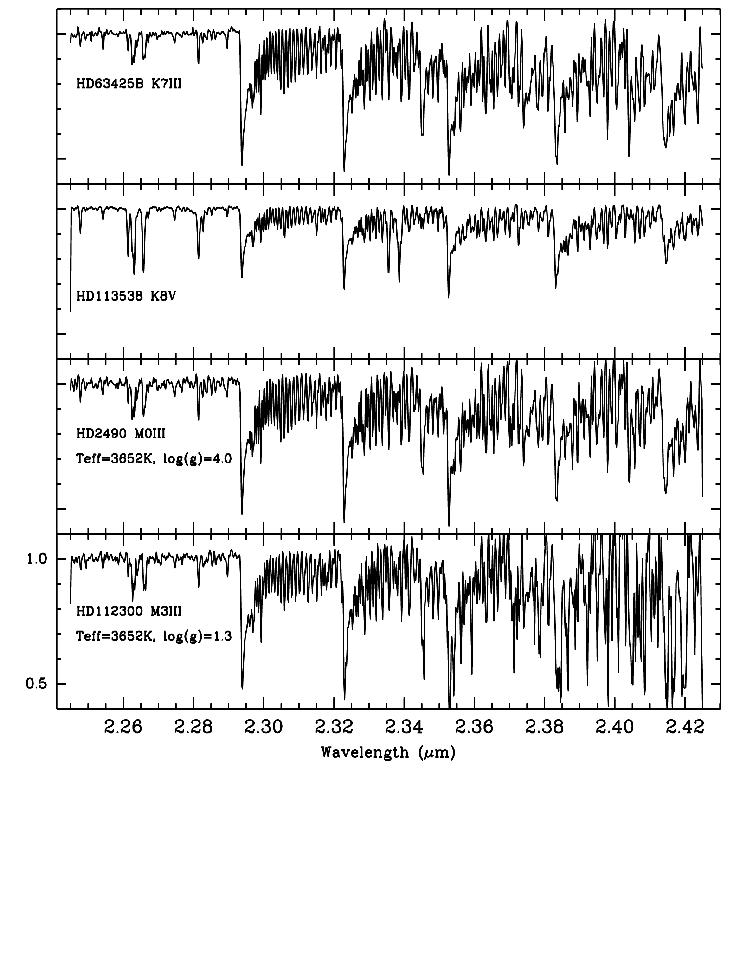

HD63425B (b) 7.71 n/a K7III data / plot data / plot data / plot
HD113538  (b) 9.02 37.8 K8V data / plot data / plot data / plot
HD2490 5.43 32.3 M0III 3652 4.0 data / plot data / plot data / plot
HD112300 3.38 -17.8 M3III 3652 1.3 N/A data / plot -

Notes: (a) Spectral type from Simbad; (b) Not in the Cayrel de Strobel+ list, all info from Simbad


The NIFS sample 1
Star V
(mag)
vr
(km/s)
Sp
Type
Original
Sampling
Rebinned
to 1A/pix

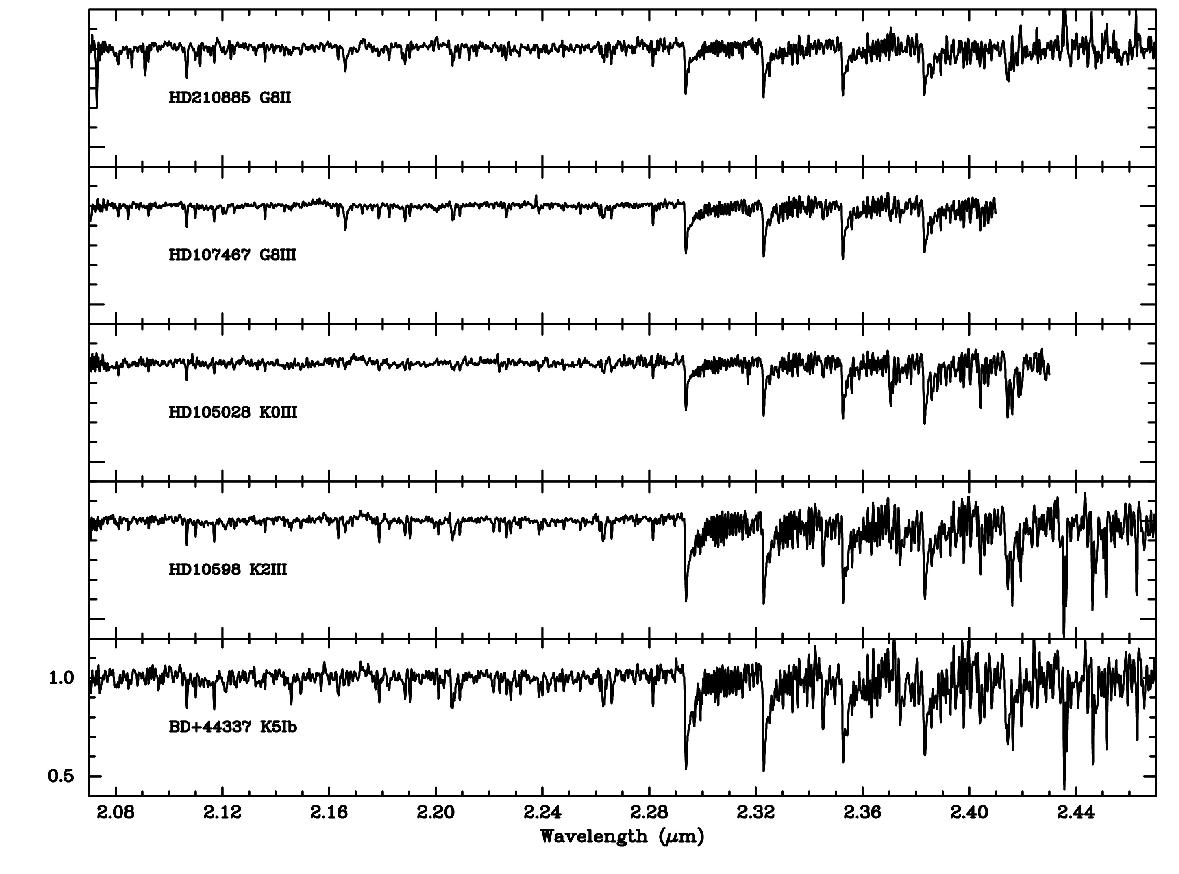

HD210885   7.28 -4.4 G8II data / plot data
HD107467 7.37  G8III data / plot data
HD105028 7.37  -24.17 K0III data / plot data
HD10598 8.56 K2III data / plot data
BD+44 337 8.30 -54 K5Ib data / plot data

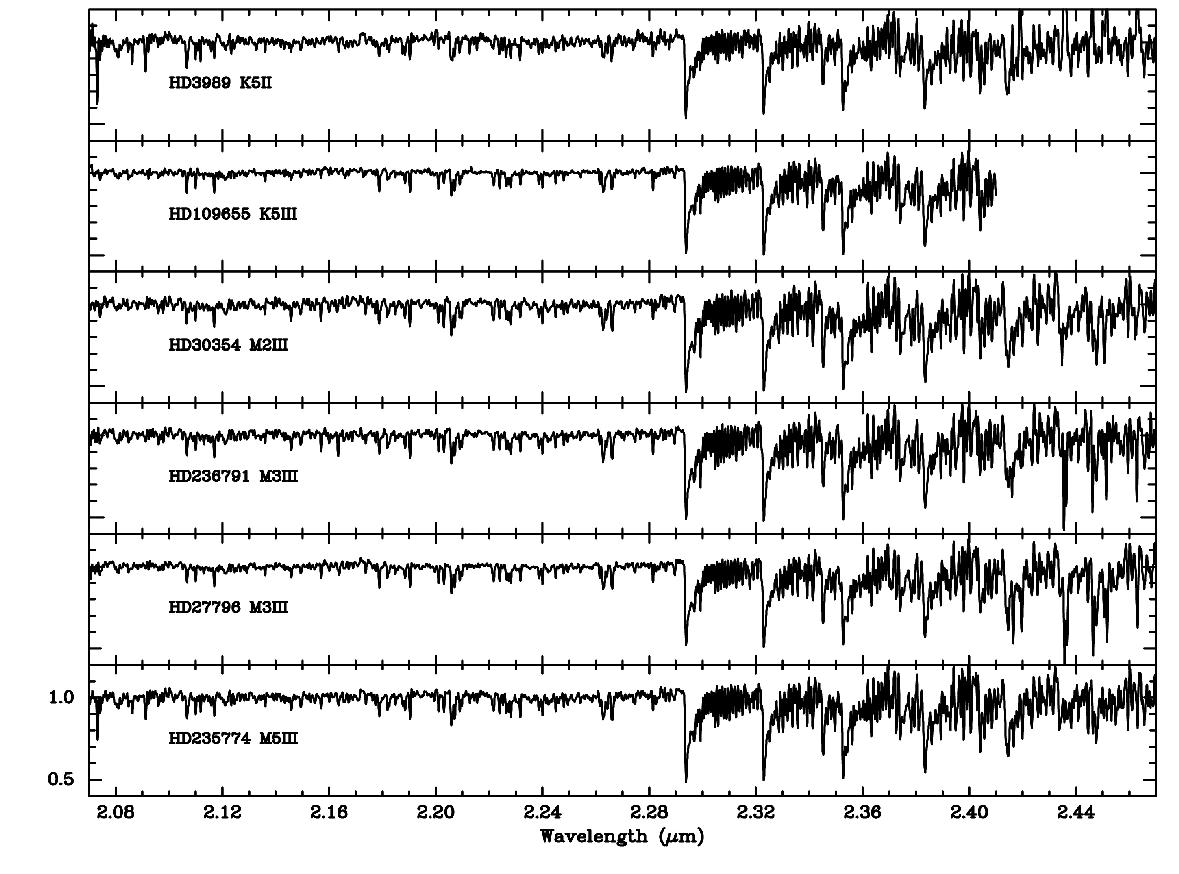

HD3989 7.07 -22.69 K5II data / plot data
HD109655 7.31 -6.85 K5III data / plot data
HD30354 8.47 M2III data / plot data
HD236791 8.91 M3III data / plot data
HD27796 7.75 M3III data / plot data
HD235774 8.69 M5III data / plot data

Notes: all info from Simbad, when available

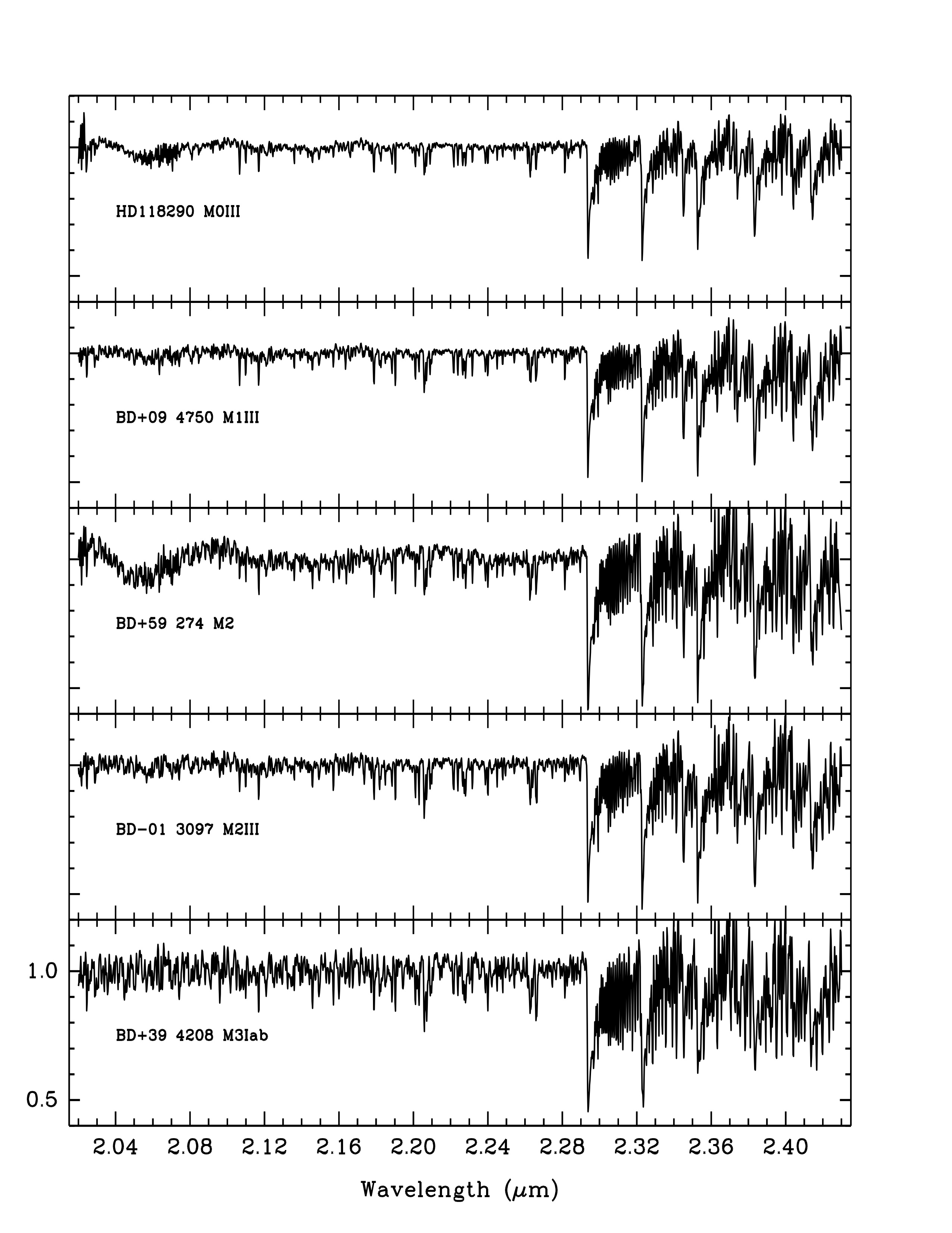

The NIFS sample 2
Star V
(mag)
vr
(km/s)
Sp
Type
Original
Sampling
Rebinned
to 1A/pix
HD109053 9.23 -10.29 G8III data / plot data
HD139195 5.26 5.44 K0III:CNs data / plot data
HD108164 8.30 K2IIICN data / plot data
HD124440 8.78 17.97 K2III data / plot data
HD162211 5.10 -25.27 K2III data / plot data
HD166229 5.48 -8.88 K2.5III data / plot data
HD339034 9.23 K3Iab data / plot data
HD129975 8.36 K3III data / plot data
HD121447 7.81 -13.8 K4III data / plot data
HD613 6.82 -15.05 K4III data / plot data

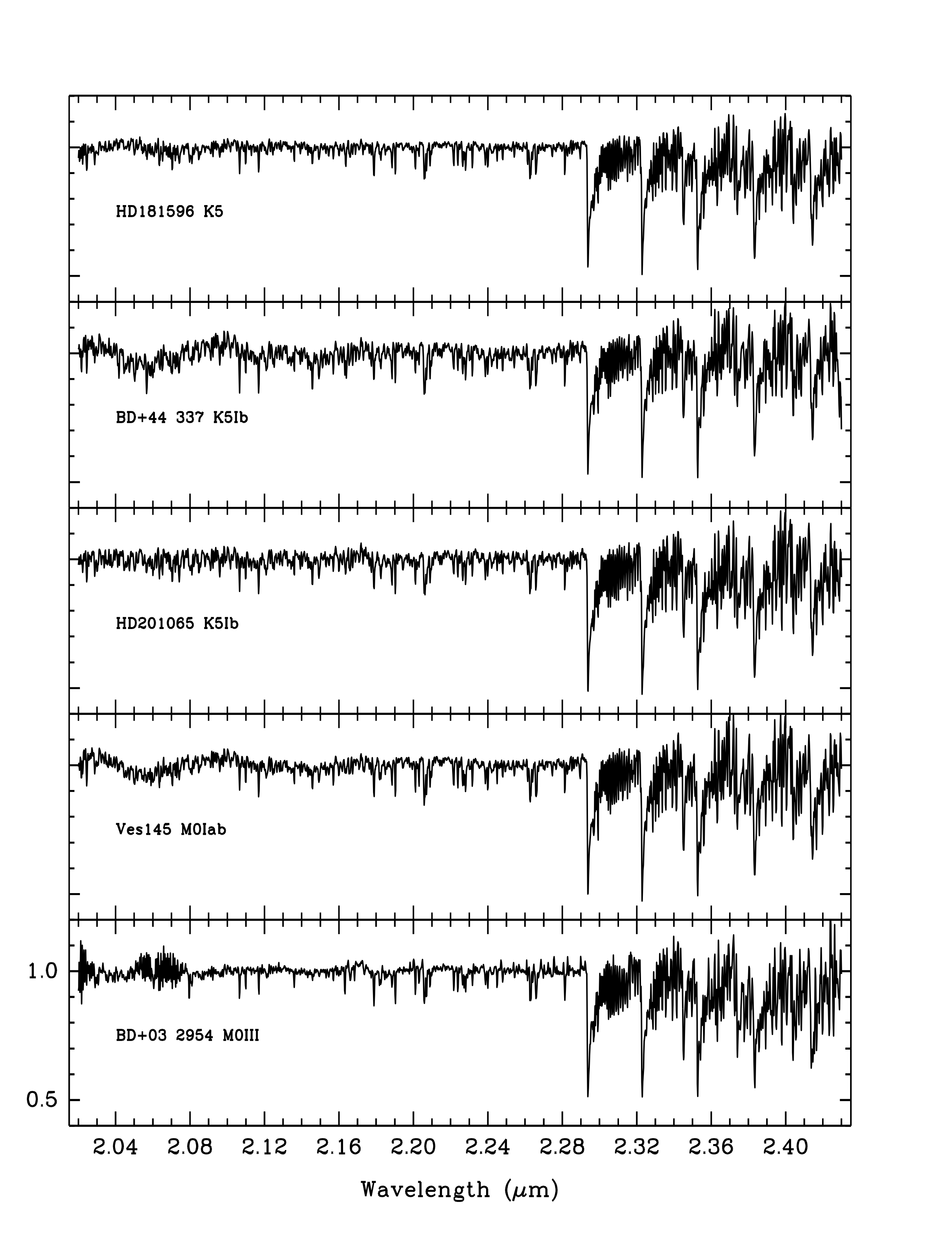

HD181596 7.51 -32.49 K5 data / plot data
BD+44 337 8.30 -54 K5Ib data / plot data
HD201065 7.55 -23.73 K5Ib data / plot data
Ves145 11.72 M0Iab data / plot data
BD+03 2954 9.34 M0III data / plot data
HD118290 8.32 M0III data / plot data
BD+09 4750 9.85 M1III data / plot data
BD+59 274 8.54 -54 M2 data / plot data
BD-01 3097 9.12 M2III data / plot data
BD+39 4208 8.81 -10.59 M3Iab data / plot data

Notes: all info from Simbad, when available

Last update 2012 June 22; Cláudia Winge
