`Alopeke & Zorro

Gemini North Gemini SouthOptical
Last Modified:
Thursday, January 14, 2021 - 14:29

`Alopeke and Zorro (Hawaiian and Spanish for "fox") are identical fast, low-noise, dual-channel, and dual-plate-scale imagers based on the Differential Speckle Survey Instrument (DSSI, Horch et al.2009, 2012). `Alopeke is permanently mounted on the calibration port at Gemini North, and Zorro on the calibration port at Gemini South. In speckle mode they provide simultaneous two-color diffraction-limited optical imaging (FWHM~0.02" at 650nm) of targets as faint as V~17 over a 6.7" field of view. Wide-field mode provides simultaneous two-color imaging in standard SDSS filters over a 60" field of view.

Available For Proposals at Gemini North
For more details, see the schedules and the CfPs.
×
Available For Proposals at Gemini South
For more details, see the schedules and the CfPs.
×

Current Instruments

  • Altair
  • IGRINS
  • NIRI
  • GNIRS
  • NIFS
  • GMOS
  • GeMS
  • Flamingos 2
  • GSAOI
  • GPI
  • `Alopeke & Zorro
    • Capability
    • Components
    • Proposal preparation
    • Calibrations
    • Observation preparation
    • Data reduction
  • GRACES
  • MAROON-X

Pages

  • Capability
  • Components
  • Proposal preparation
  • Calibrations
  • Observation preparation
  • Data reduction

Capability Summary

Speckle Imaging

  • 1-minute integrations comprised of 1000 images of 60 msec each
  • 256x256 pixel (2.5") subarray
  • Can achieve diffraction-limited resolution (0.016" FWHM at 500nm and 0.025" at 800nm)
  • Larger subarrays may be used for extended objects, but the performance will depend on the stability of the atmosphere.

Wide-Field

  • Read out of the full frame at 1MHz
  • Possible to:
    • bin
    • read out a subarray
    • use the EMCCD amplifier for faster readout
    • read more slowly (0.1 MHz) for lower read noise

Guiding Options

  • PWFS

Papers containing 'Alopeke and/or Zorro data should acknowledge Gemini and the 'Alopeke / Zorro team.

The PI for the Gemini Speckle program is Steve Howell (NASA Ames Research Center).

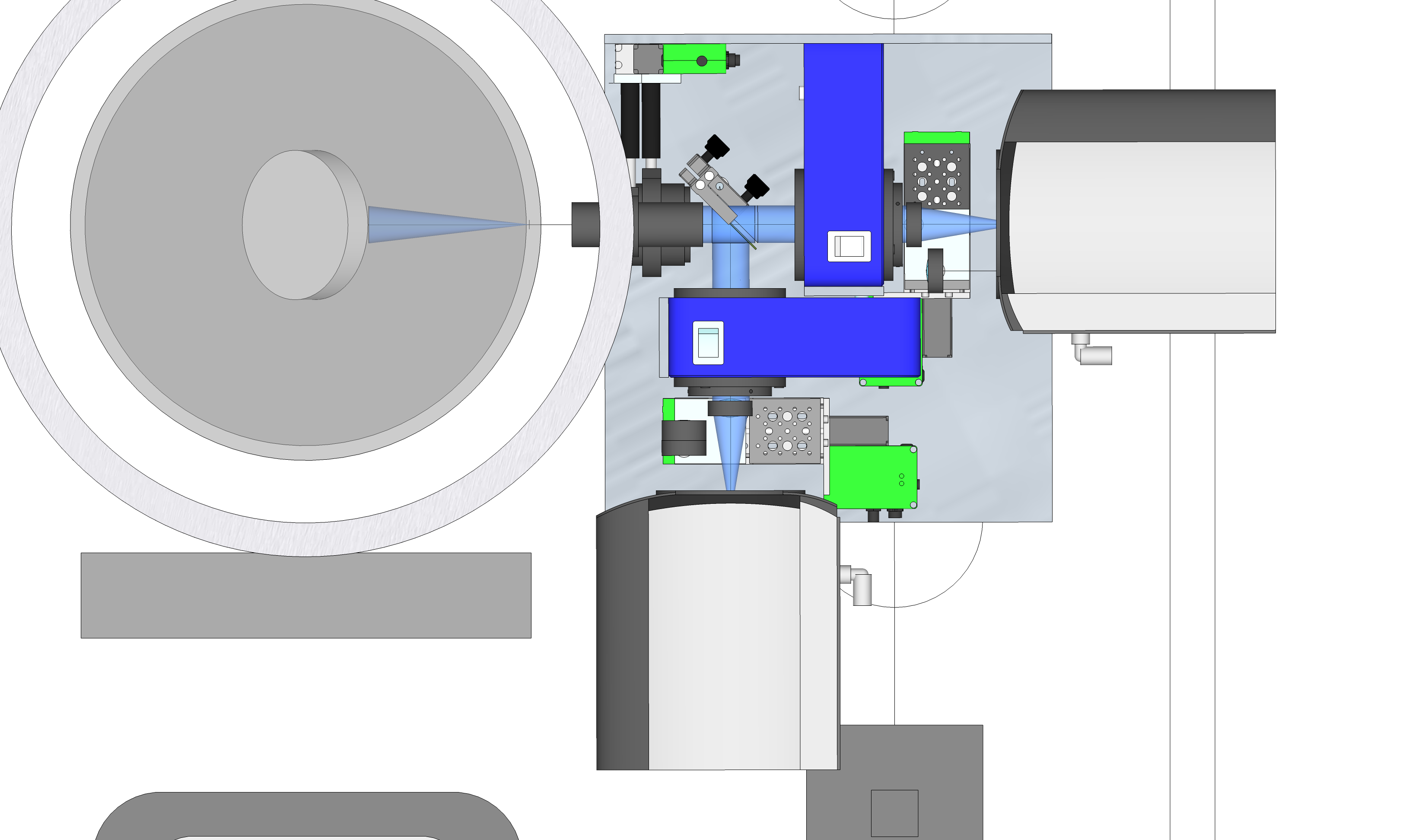

Layout #1

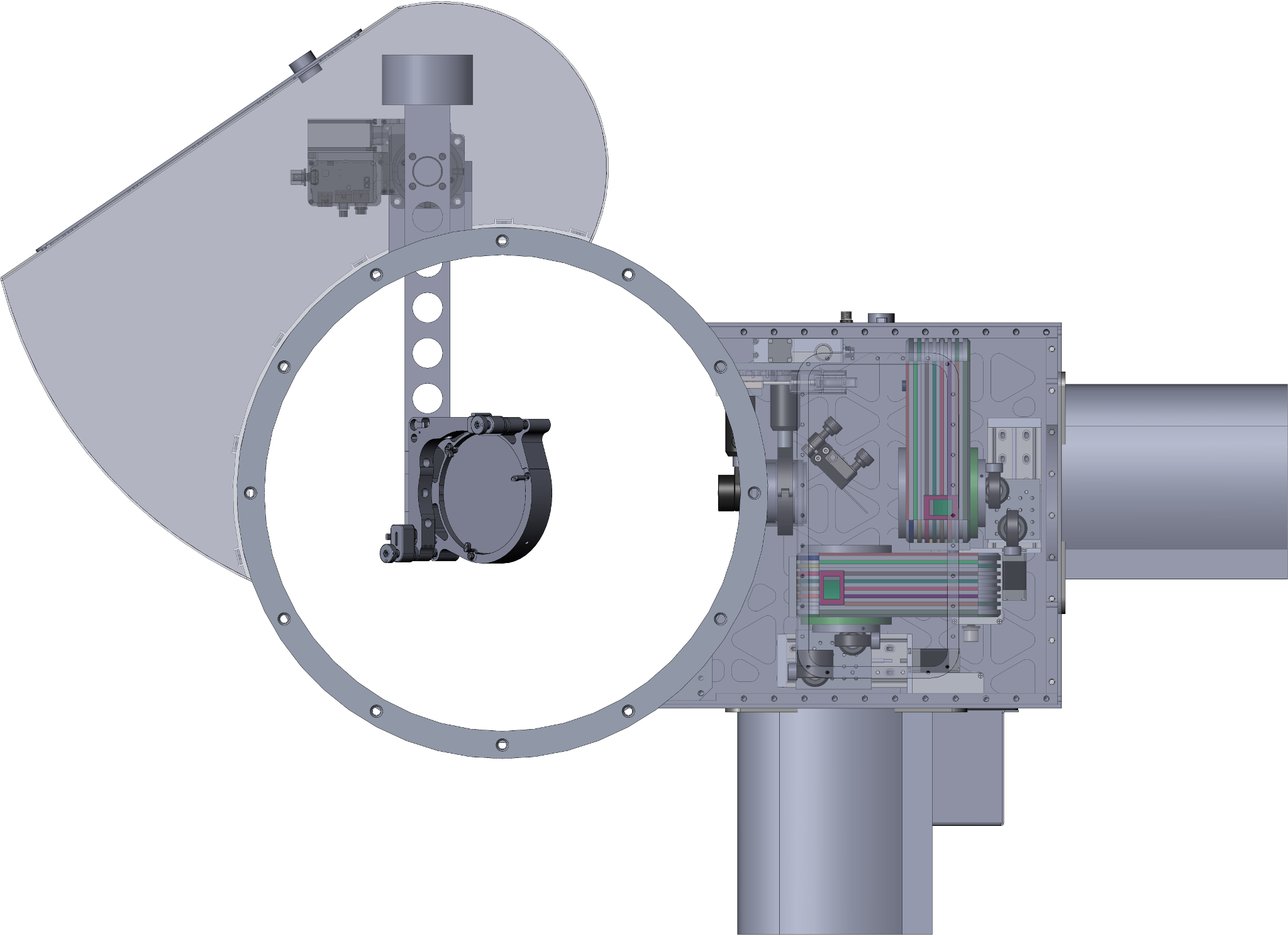

Layout #2

Instrument Team

Instrument Scientist GN

Andrew Stephens


Instrument Scientist GS

Ricardo Salinas
