EMCCDs

'Alopeke & Zorro have two iXon Ultra 888 back-illuminated Electron Multiplying CCDs (EMCCDs).

Type iXon Ultra 888 EX
Size 1024 x 1024
Pixel Size 13 μm
Dark current 0.0002 e-/pix/sec
Well depth 80,000 e-
Linearity better than 99.9%
Timestamp accuracy 10 ns

Minimum Exposure Time (s)
ROI / Binning 1x1 2x2 4x4
1024x1024 0.0562 0.0278 0.0135
512x512 0.0282 0.0140
256x256 0.0144

Read Noise (e-)
EMCCD Amplifier Conventional Amplifier
Readout Speed (MHz) 30 20 10 1 1 0.1
Without EM 130 80 40 12 6 3.5
With EM <1 <1 <1 <1 - -

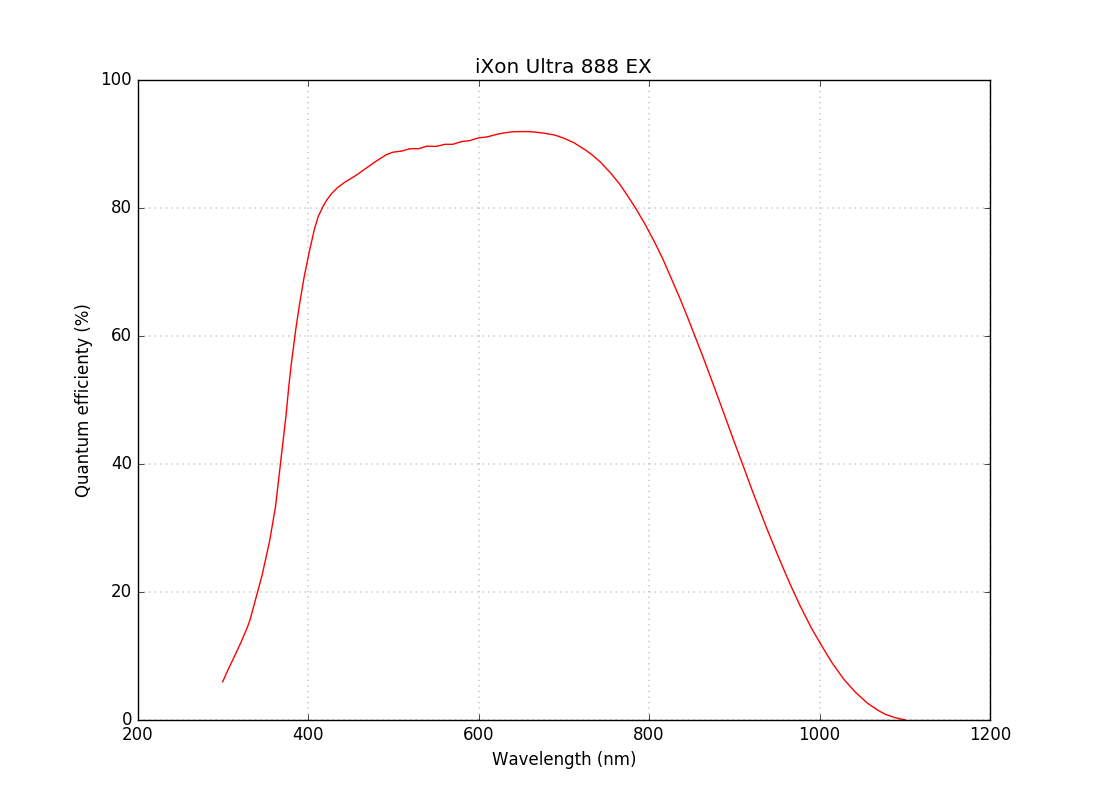

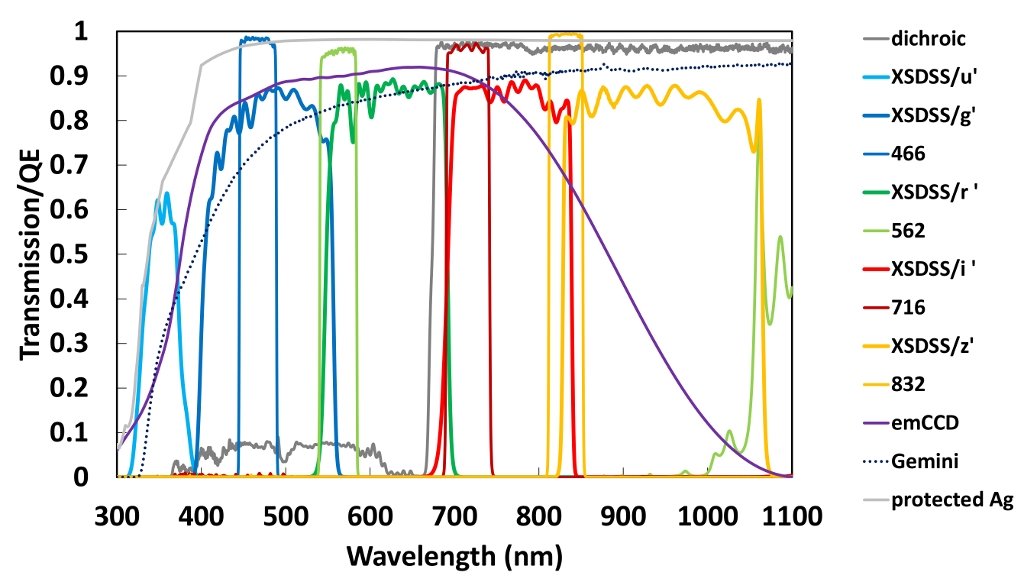

Transmission curves

Filters

'Alopeke and Zorro use a dichroic beam splitter to simultaneously image in two filters. The incident light is split at 674 nm, reflecting blue light through the blue filter wheel and transmitting red light through the red filter wheel.

Filter transmission curves
Filter Name Central Wavelength (nm) Width (nm) Transmission

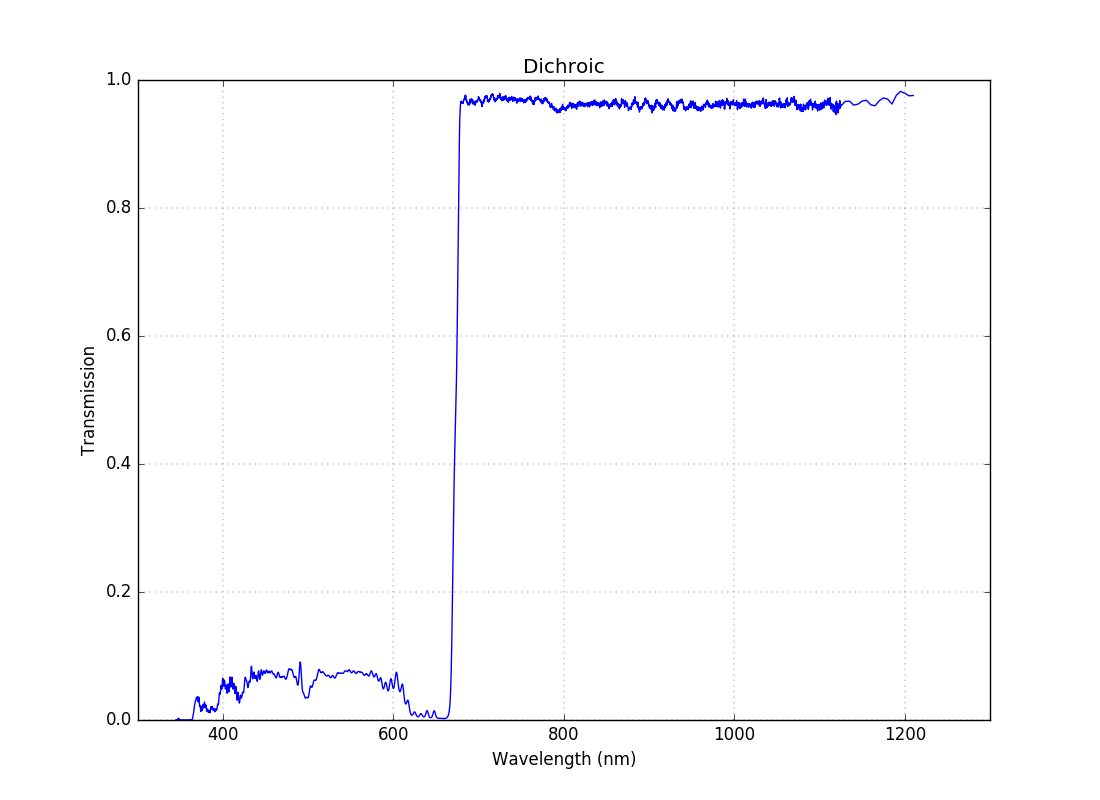

Dichroic 674 - data, plot

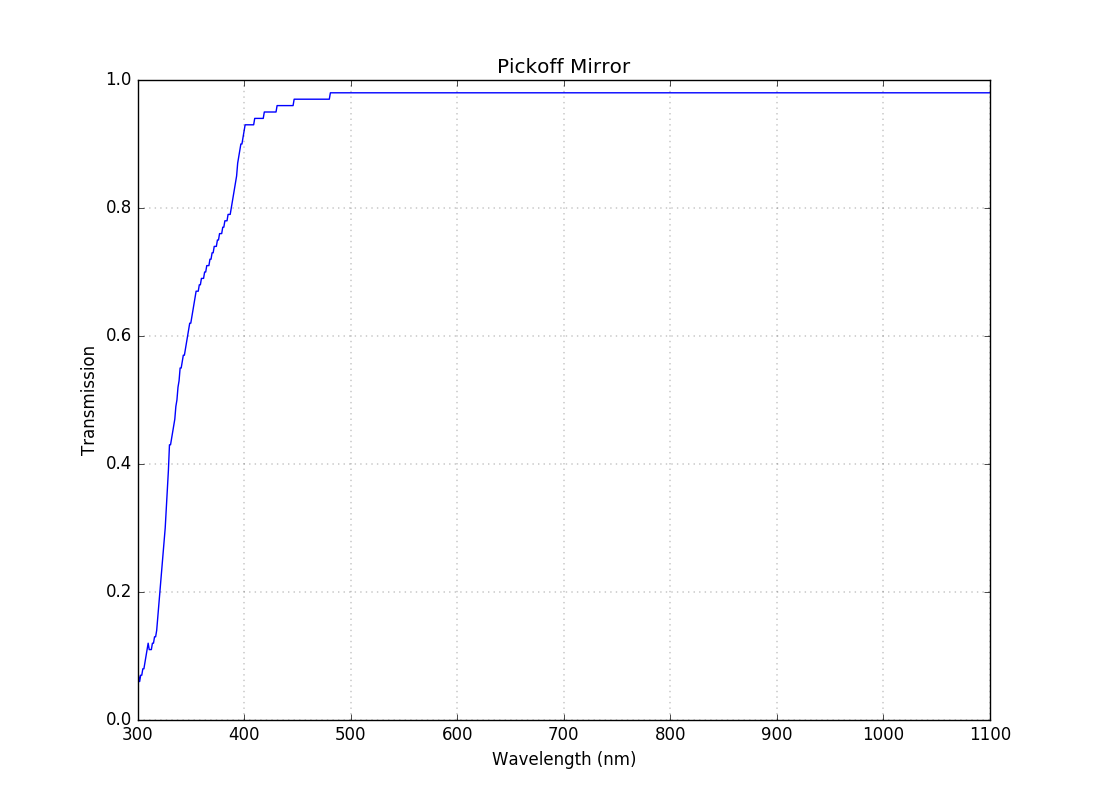

Pickoff Mirror - - data, plot
Blue Wheel

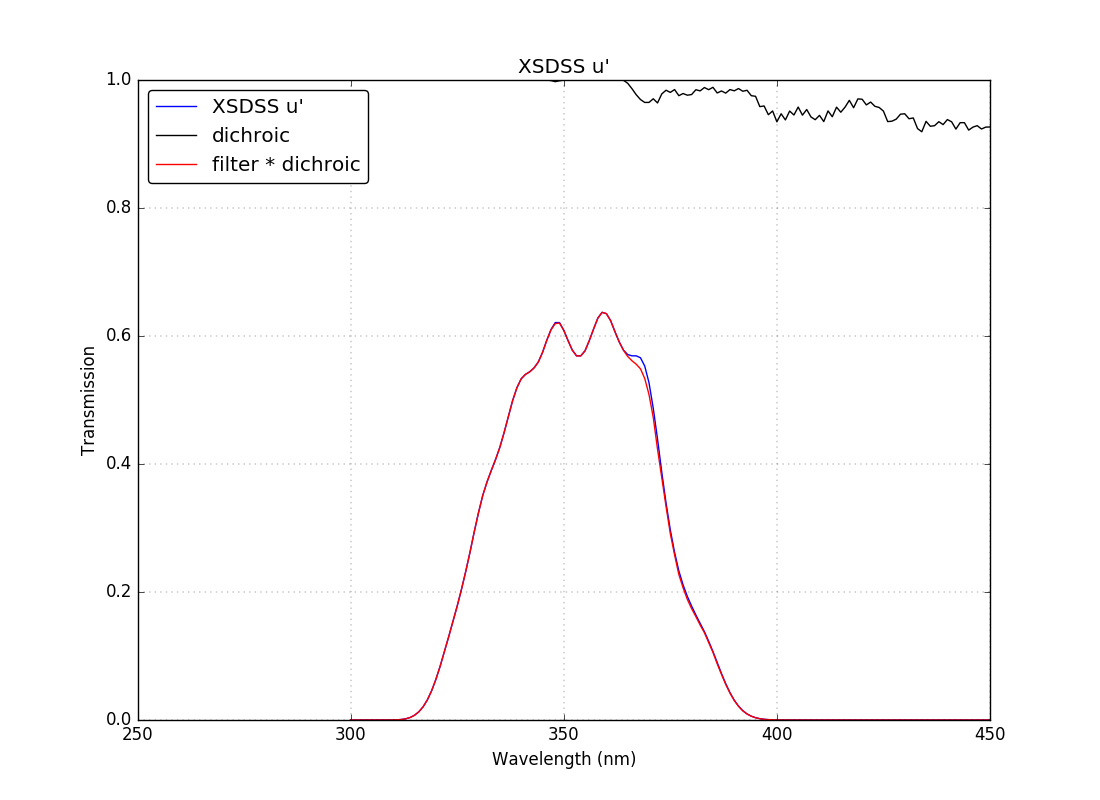

XSDSS u' 352 46 data, plot

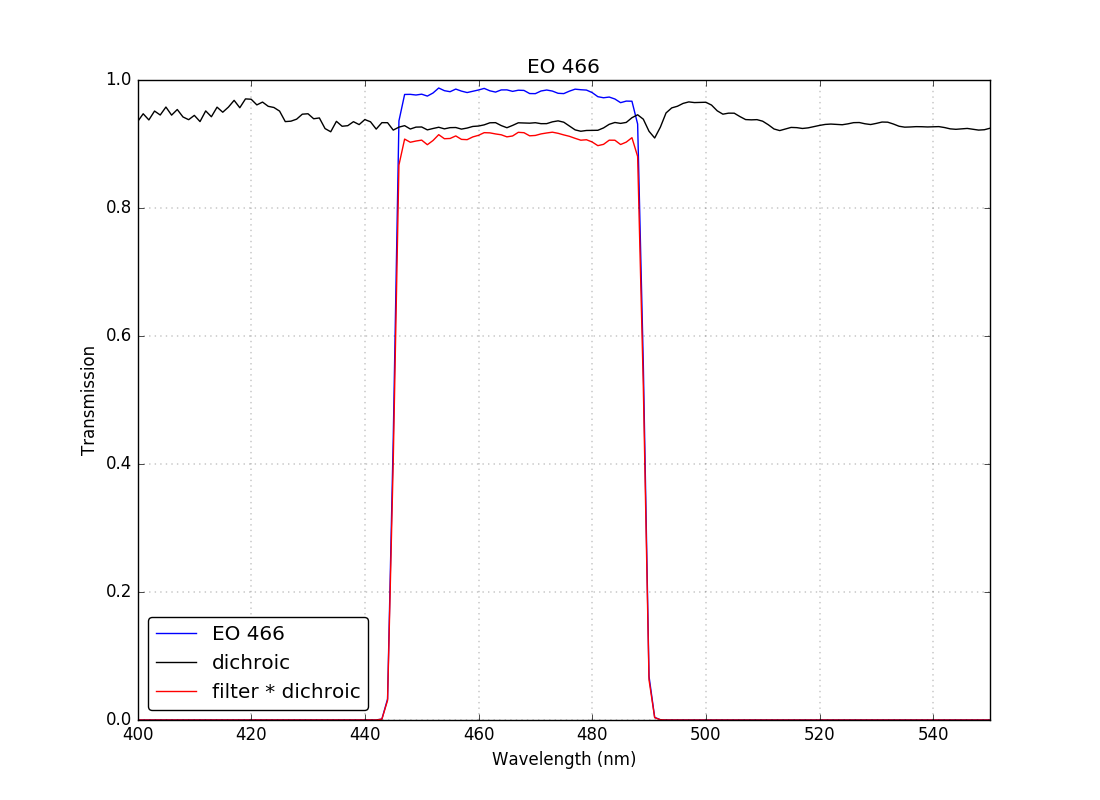

EO 466 466 44 data, plot

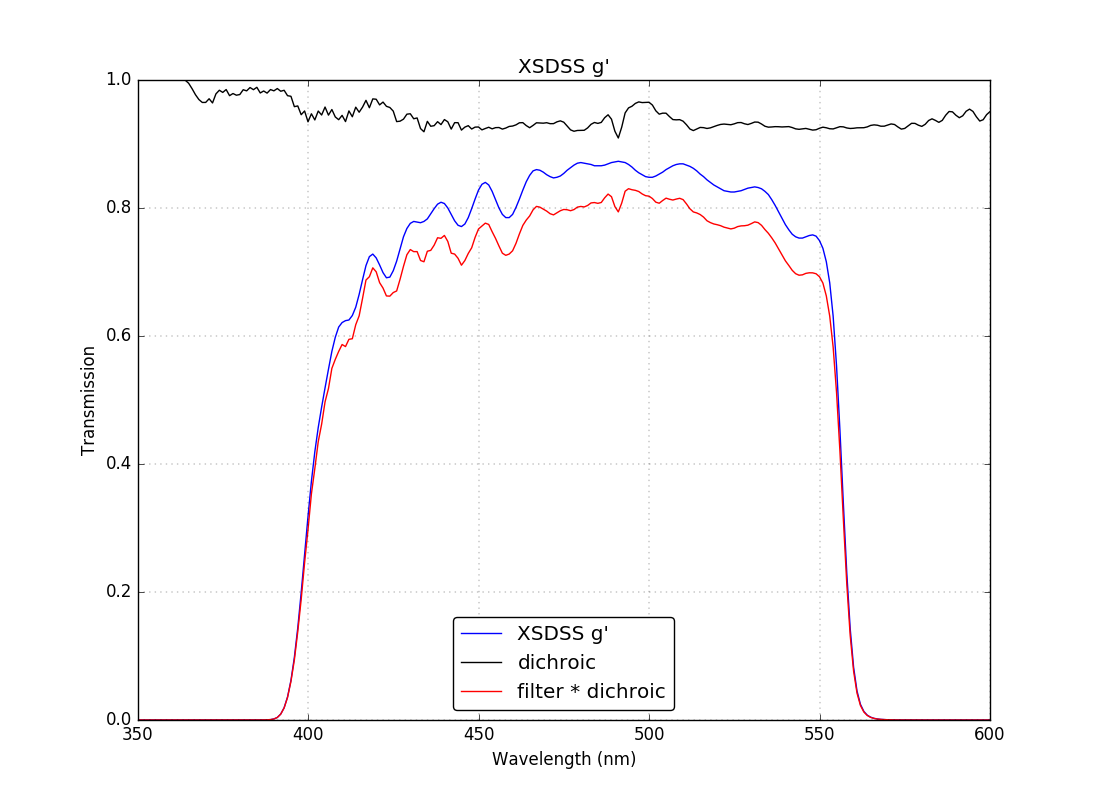

XSDSS g' 479 154 data, plot

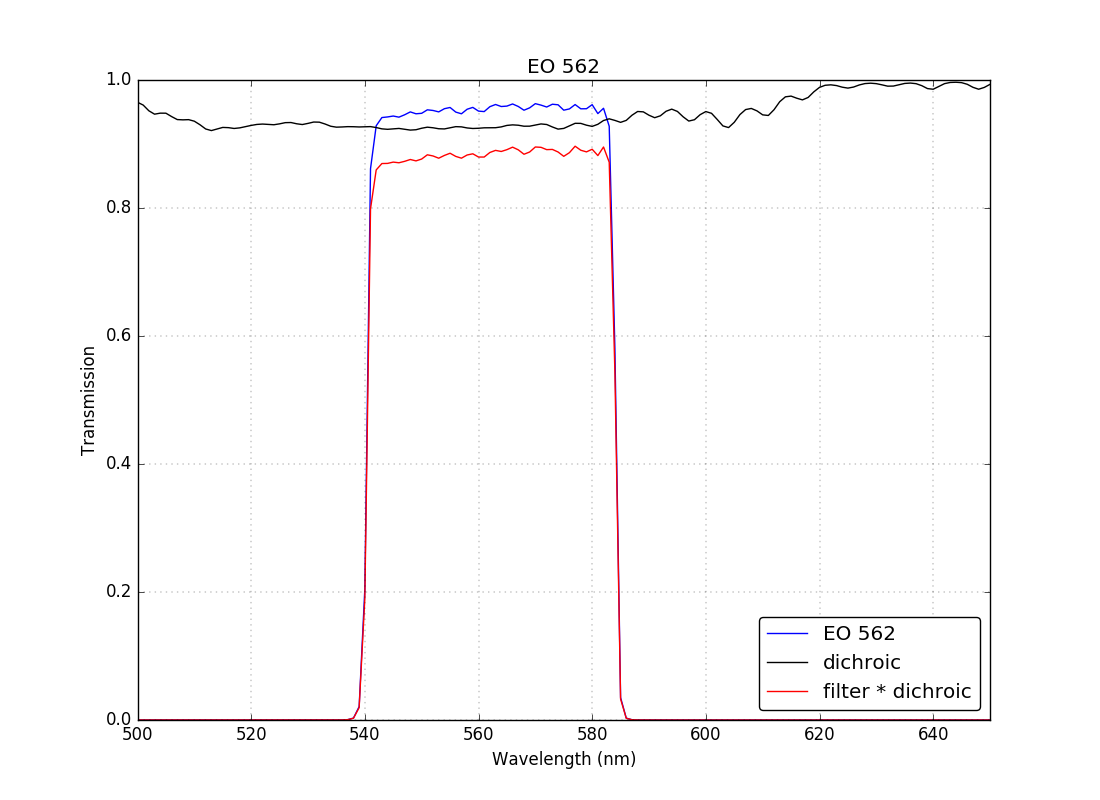

EO 562 562 54 data, plot

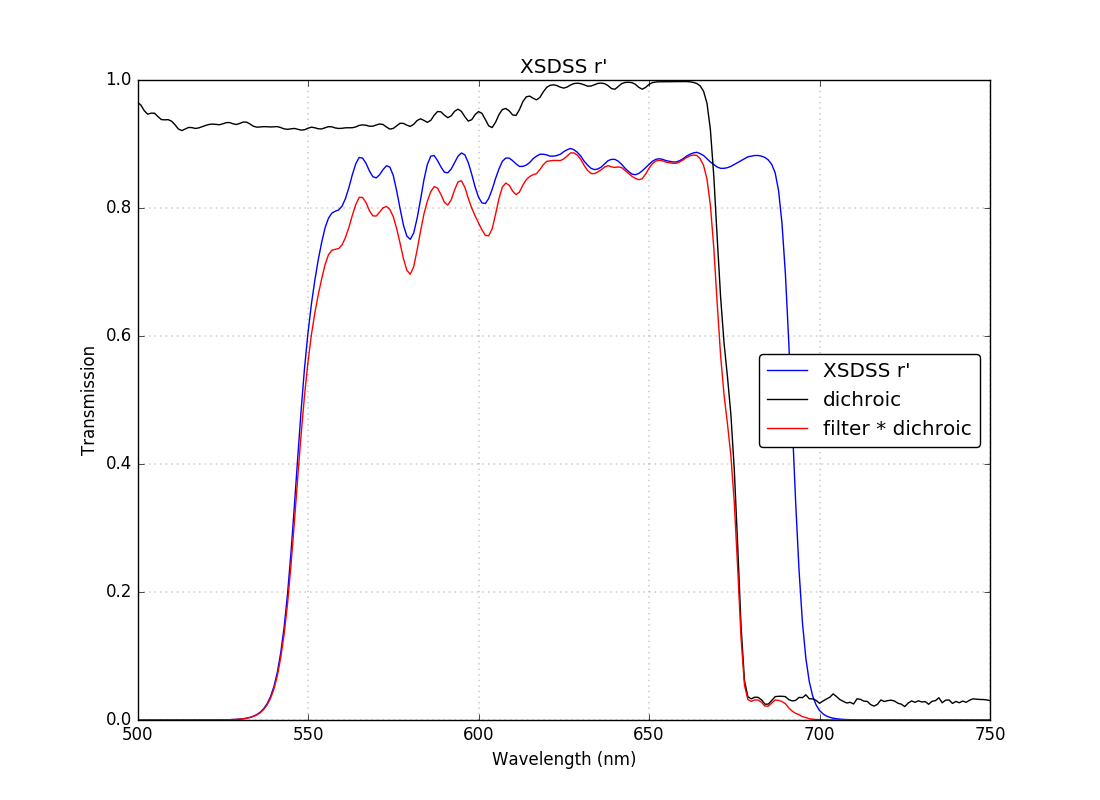

XSDSS r' 620 145 data, plot

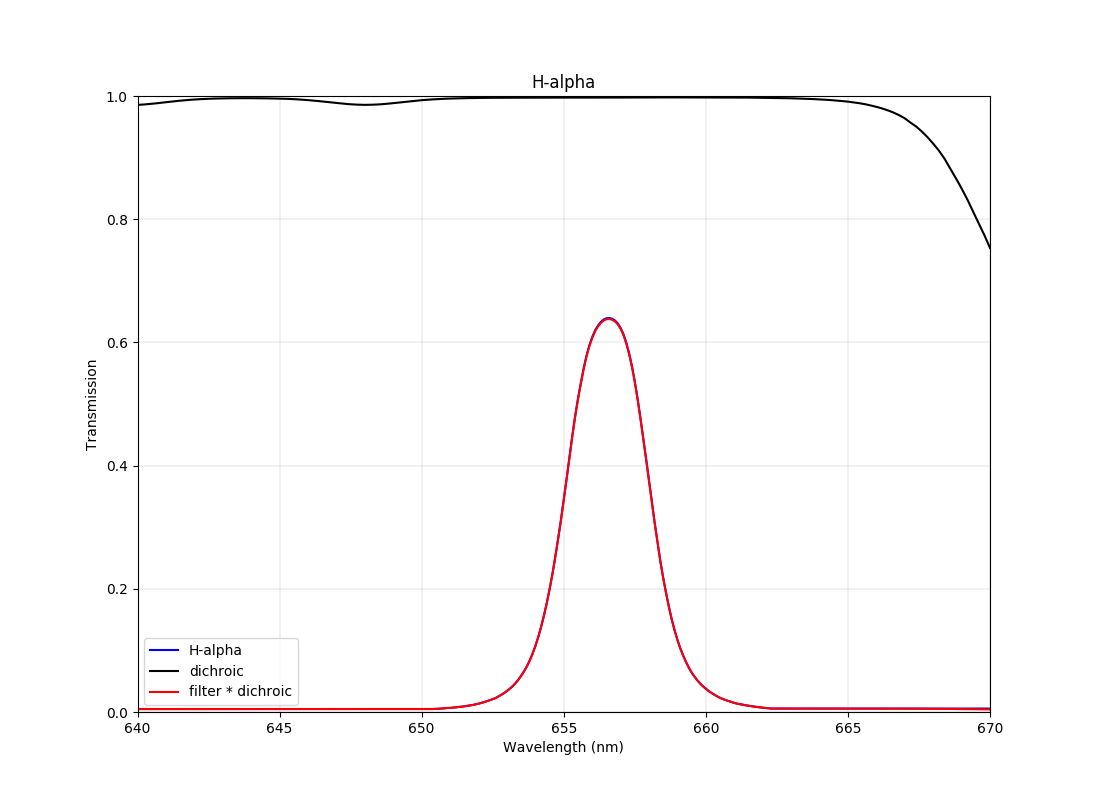

H-alpha (Zorro only) 656.52 3.22 data, plot
Red Wheel

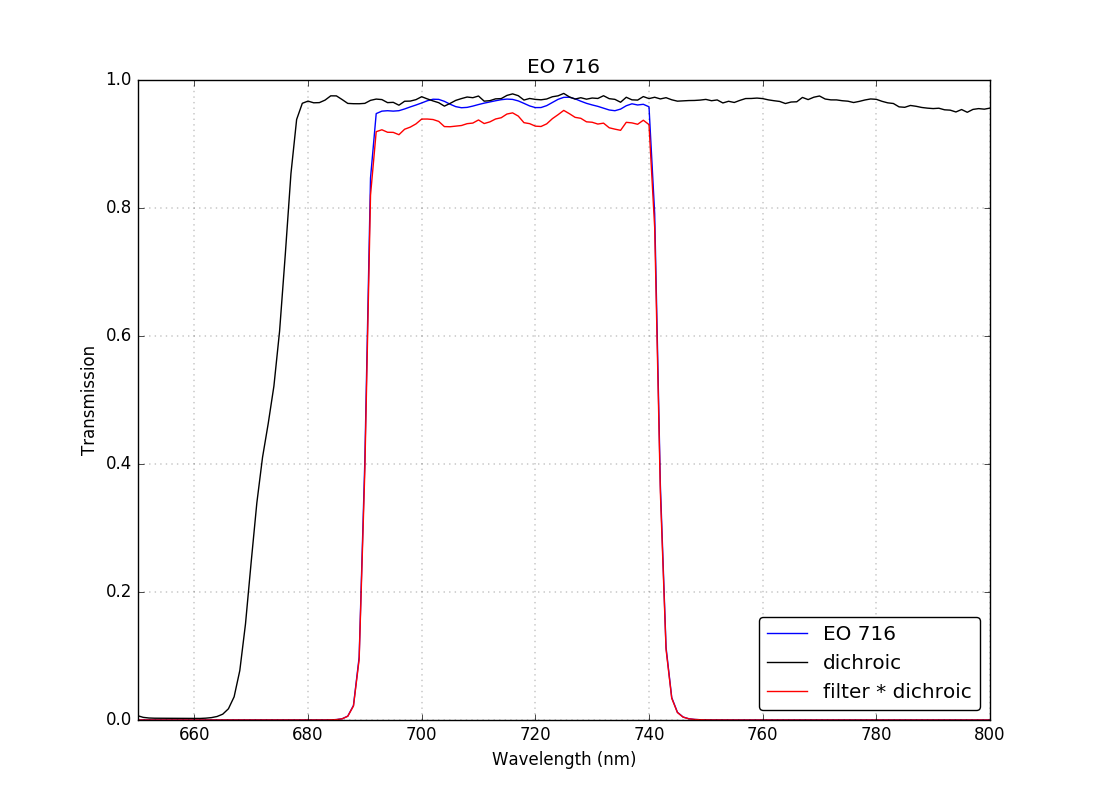

EO 716 716 52 data, plot

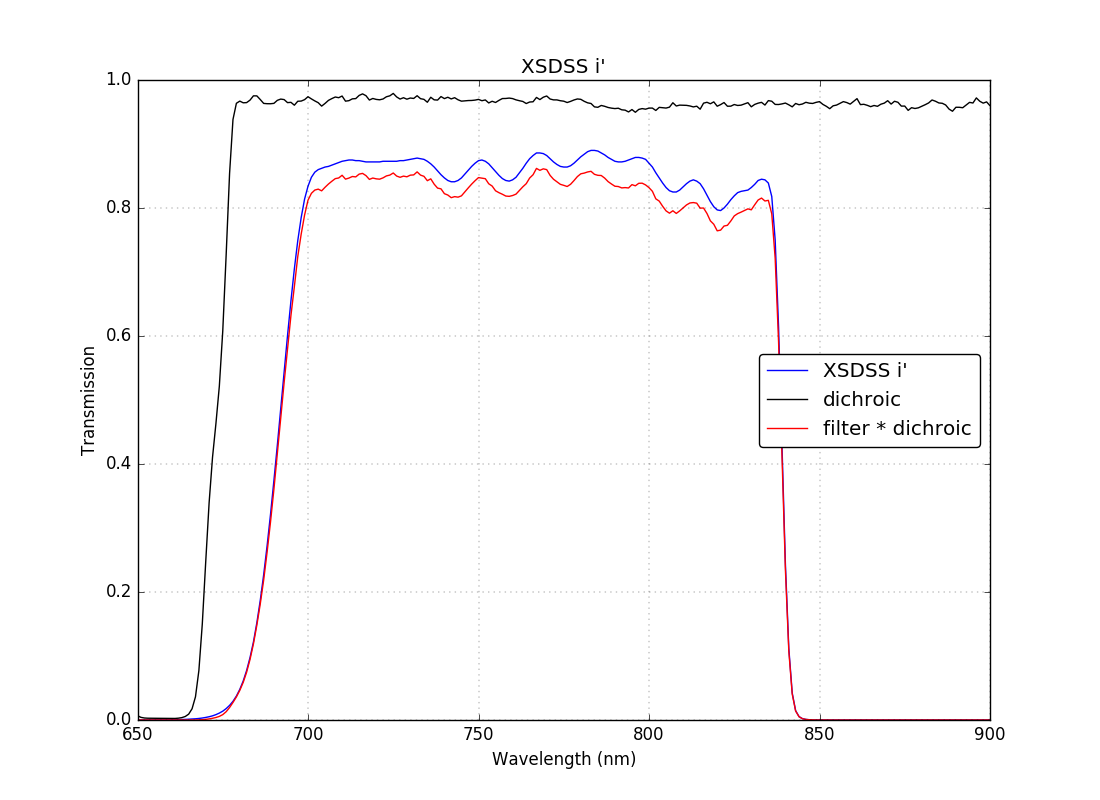

XSDSS i' 765 148 data, plot

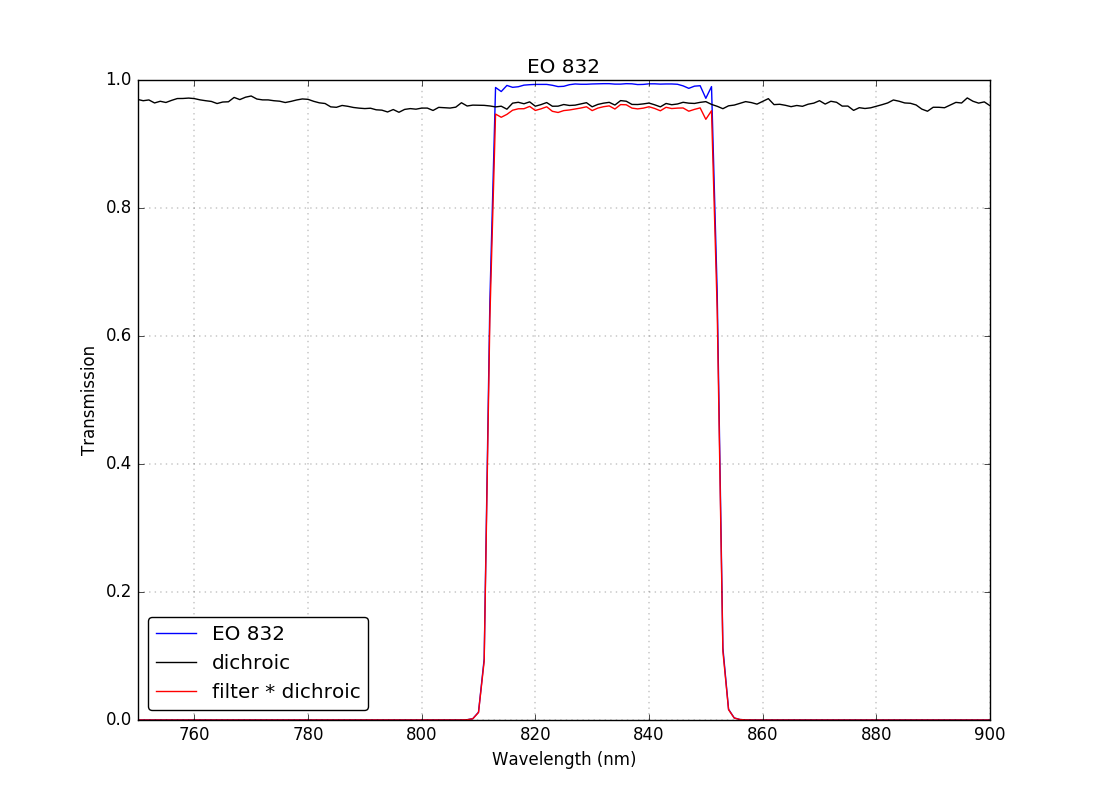

EO 832 832 40 data, plot

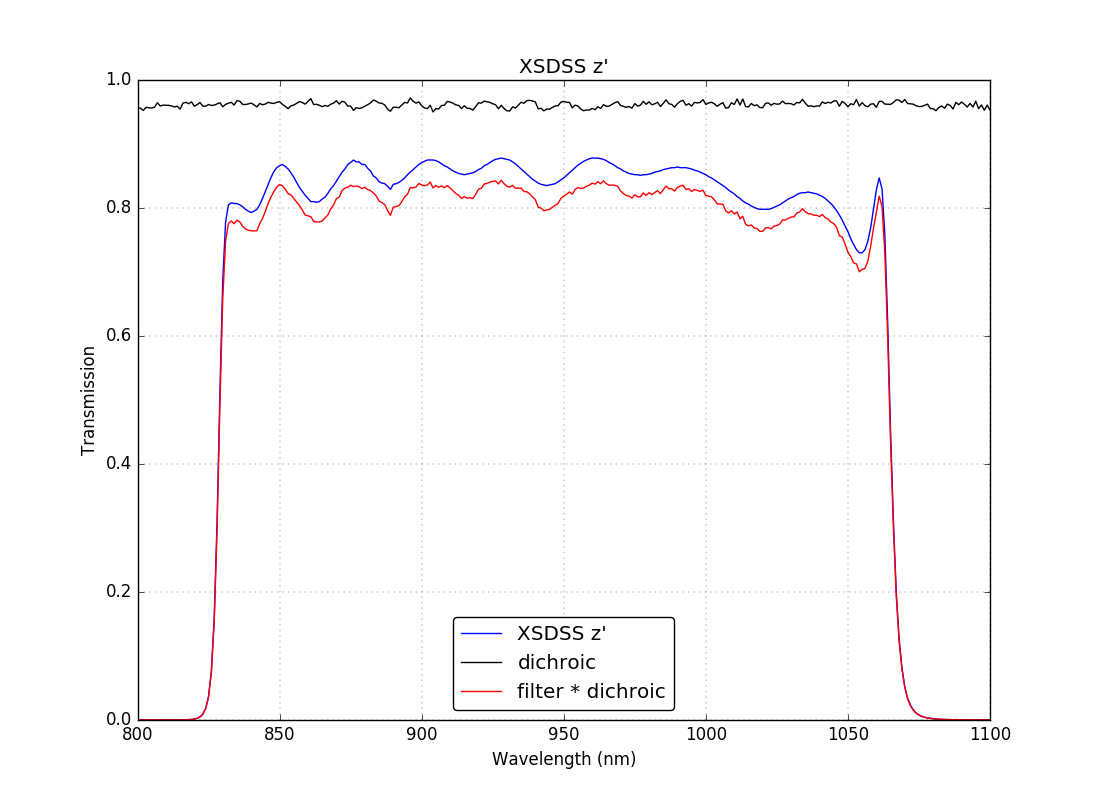

XSDSS z' 947 236 data, plot
