OSCIR Filters |

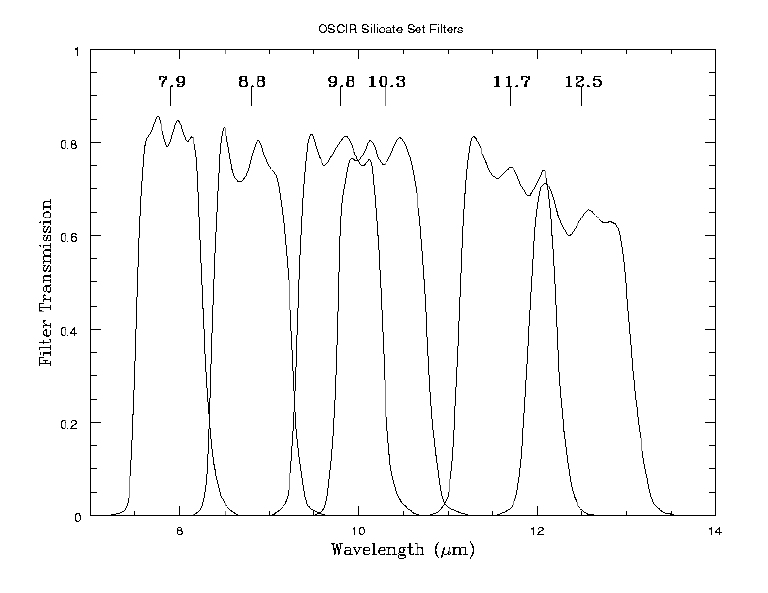

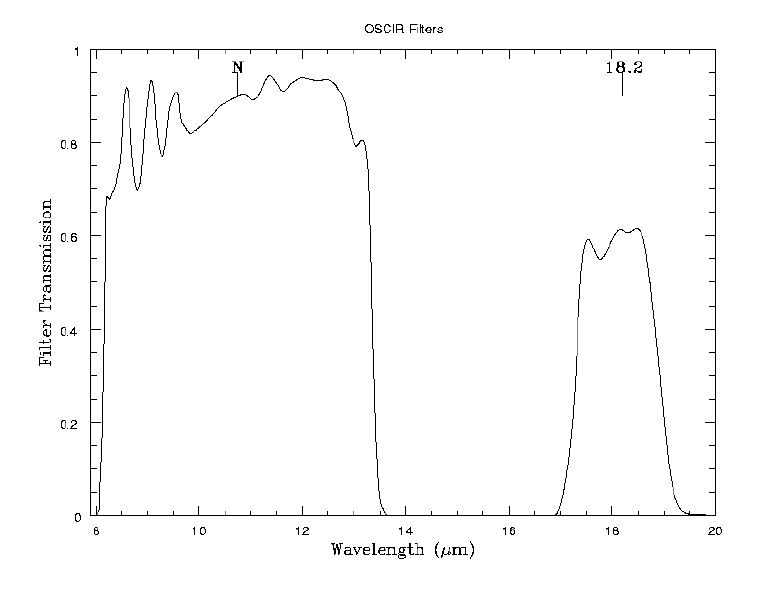

OSCIR contains a range of broad and narrower band filters as shown in the table below. Transmission curves are available for the broad-band and narrower (silicate set) filters. You can compare these with the atmospheric transmission presented as part of the observing condition constraints.
| Filter | Central Wavelength (micron) |
Bandwidth (micron) |
OSCIR Zero Magnitude Flux Density (Jy) |
| K (acquisition) | 2.2 | -- | 650.6 |
| M (acquisition) | 4.8 | -- | 157.8 |
| 7.9 | 7.91 | 0.755 | 59.4 |
| 8.8 | 8.81 | 0.871 | 49.6 |
| 9.8 | 9.80 | 0.952 | 39.9 |
| 10.3 | 10.27 | 1.103 | 36.6 |
| 11.7 | 11.70 | 1.110 | 28.5 |
| 12.5 | 12.49 | 1.156 | 25.1 |
| N (10.8) | 10.75 | 5.230 | 37.8 |
| IHW18 (18.2) | 18.17 | 1.651 | 11.9 |
| Q3 (20.8) | 20.8 | 1.650 | -- |
Last update February 27, 2000; Phil Puxley
