Optomechanical Overview

Altair Optomechanical Overview

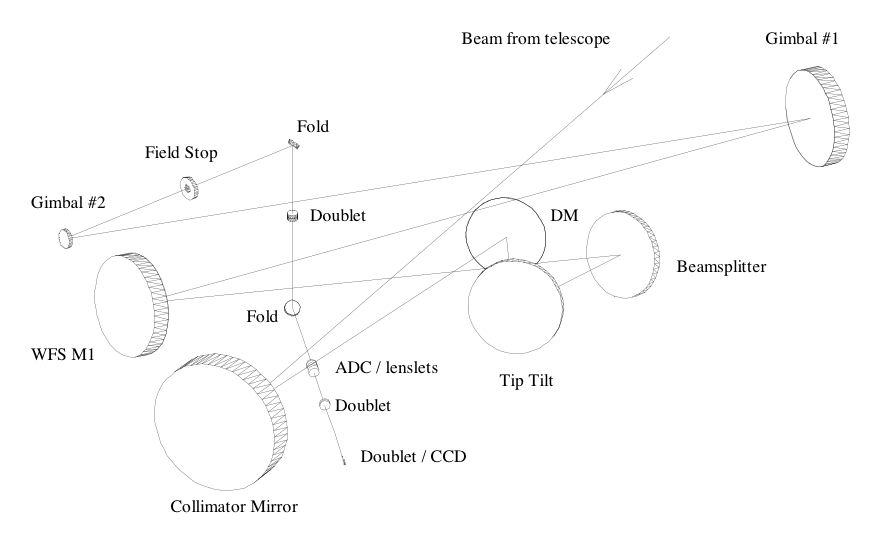

Optical path including the common path and the NGS WFS path Altair NGS WFS optical path

Altair NGS WFS optical path

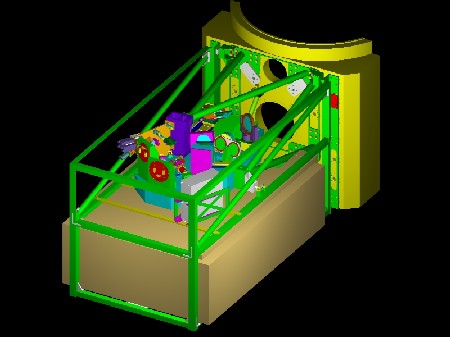

CAD plot of the optical bench + electronic enclosure + ISS mounting

ISS+Altair CAD

ISS+Altair CAD

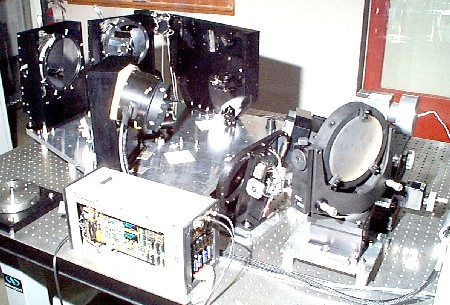

The optical bench back at HAI ready for alignment

Optical bench

The Altair/Telescope Control System

Altair control system

Altair control system

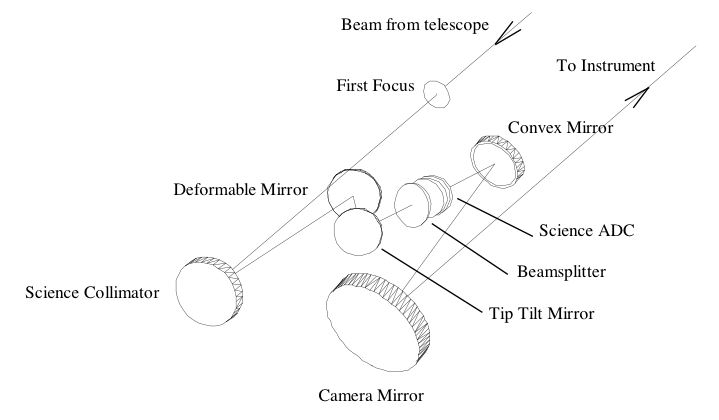

Another Optical Path view: the science path

Altair Science Path

Altair Science Path
